Low profile for commercial applications
Fan coil units are an integral part of an overall air conditioning system where the energy transfer medium (i.e. chilled or hot water) is circulated by a central plant facility. temperzone offers an extensive range of ducted fan coil units. A variety of options and accessories are available to meet most air conditioning requirements.

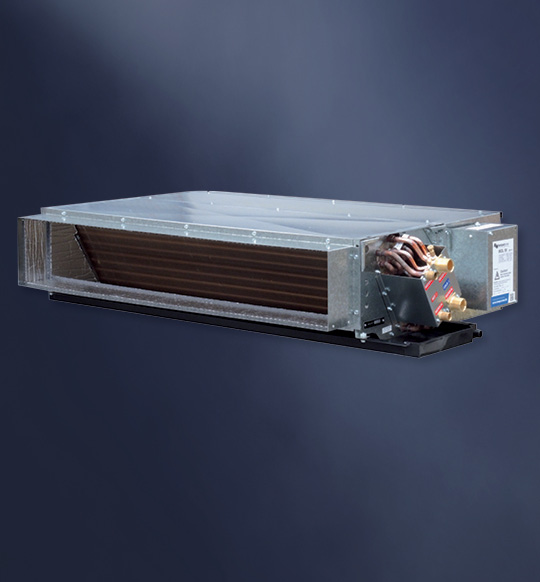

IMDL Low profile CHW FCU's
- 3 Row Cooling + 1 Row Heating
- 4 Row Cooling
- 4 Row Cooling + Electric Heat
Airflow Range (l/s):
205, 335, 480, 650
Designed to Impress
The low overall height of 250 mm for the smaller units and 260 mm for the larger units makes them ideally suited to office building applications where false ceiling space is at a premium.
Can be controlled by a third party device
EPOXY COATED COILS
Standard for added coil protection. Surpass 1000 hr salt spray test
Centrifugal indoor fan
Low profile indoor unit
Epoxy Coated coils
All Temperzone units come standard with epoxy coated indoor and outdoor coils for added protection in harsh environments.
For corrosive environments, varieties of lacquered fin stock have been developed as an alternative to the more expensive copper fin stock.
Of the various coatings, for aluminium fin stock, epoxy has emerged as the preferred coating as protection against both chemical and salt laden air corrosion. The controlled application of epoxy, to the aluminium fin stock, results in a highly corrosion resistant epoxy film of only 4-5 microns.
Seamless drain tray
To remove the chance of water leakage the drain pan is a single one-piece seamless PVC tray.
G2 filters come standard with the unit and are suitable in applications such as domestic, apartments and light applications where higher filtration is not required.
