Low profile for commercial applications
Fan coil units are an integral part of an overall air conditioning system where the energy transfer medium (i.e. chilled or hot water) is circulated by a central plant facility. temperzone offers an extensive range of ducted fan coil units. A variety of options and accessories are available to meet most air conditioning requirements.

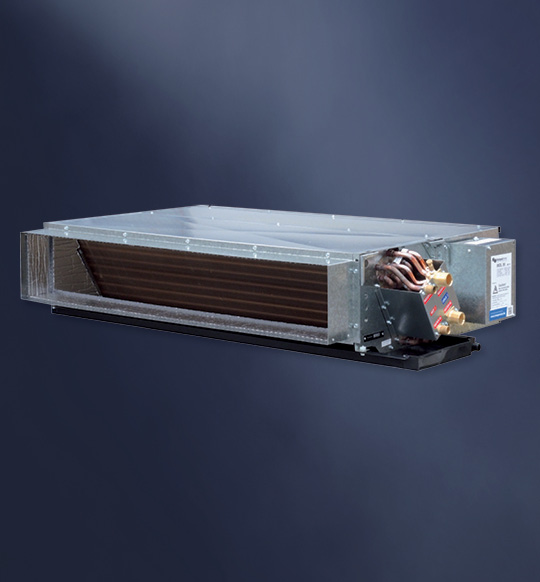

IMDL-Y Premium Low profile CHW FCU's
Available in:
- 3 Row Cooling + 1 Row Heating
- 4 Row Cooling
- 4 Row Cooling + Electric Heat
Airflow Range (l/s):
200, 325, 480, 700
Designed to Impress
The stepless modulation capability of EC fan speeds make it possible to accurately regulate air volume in strict relation to a room’s real air conditioning requirements. This also enables temperature and humidity fluctuations to be significantly minimised, leading to superior comfort levels.
3RD PARTY
Can be controlled by a third party device
EC FAN
Variable fan speed control 0-10VDC input
LOW PROFILE
Low profile indoor unit
WIDE ESP
Wide ESP range
EC Fan
EC technology motors provide higher efficiency and energy savings compared with AC motors.
EC stands for Electronically Commutated, often referred to as a Brushless DC electric motor (BLDC motor) with integrated controller electronics. The fan is able to be speed controlled by 0-10VDC or as a fixed amount of speeds selectable on the unit.
Epoxy Coated coils
All Temperzone units come standard with epoxy coated indoor and outdoor coils for added protection in harsh environments.
For corrosive environments, varieties of lacquered fin stock have been developed as an alternative to the more expensive copper fin stock.
Of the various coatings, for aluminium fin stock, epoxy has emerged as the preferred coating as protection against both chemical and salt laden air corrosion. The controlled application of epoxy, to the aluminium fin stock, results in a highly corrosion resistant epoxy film of only 4-5 microns.
Seamless Drain Tray
To remove the chance of water leakage the drain pan is a single one-piece seamless PVC tray.
G2 Filters
G2 filters come standard with the unit and are suitable in applications such as domestic, apartments and light applications where higher filteration is not required.
