Low Profile - Evolve Range (IMDL-Y)

First choice for your chilled water projects

Temperzone's Evolve range of chilled water fan coils are all designed, manufactured and supported using local expertise. They come full of features that make them your first choice for chilled water projects.

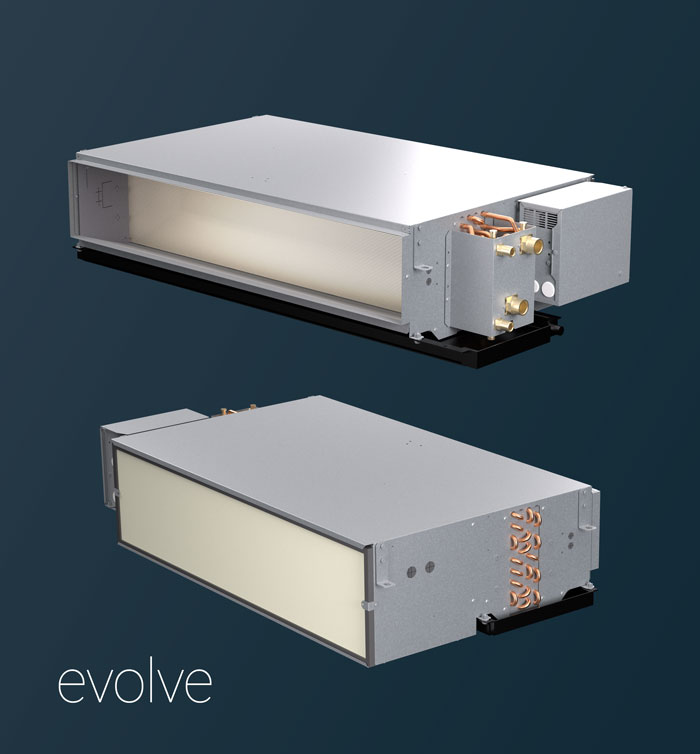

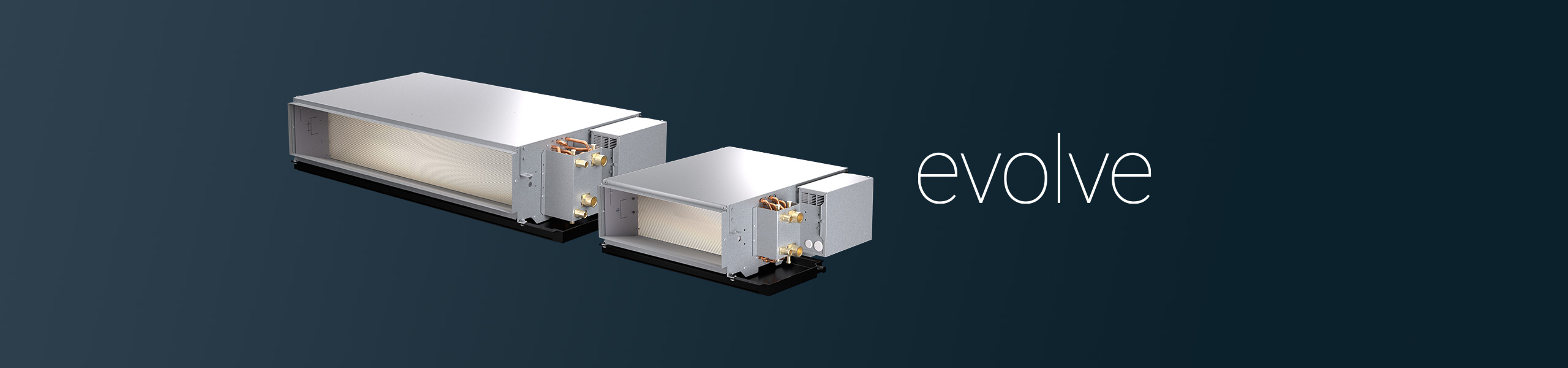

Evolve IMDL-Y Low profile CHW FCU's

Available in:

  • Left Hand or Right Hand units as standard
  • 3 Row Cooling + 1 Row Heating
  • 4 Row Cooling
  • 4 Row Cooling + Electric Heat

Airflow Range (l/s):

  • IMDL 42Y         200 l/s
  • IMDL 62Y         330 l/s
  • IMDL 92Y         440 l/s
  • IMDL 132Y       650 l/s

Designed to fit

The stepless modulation capability of EC fan speeds make it possible to accurately regulate air volume in strict relation to a room’s real air conditioning requirements. This also enables temperature and humidity fluctuations to be significantly minimised, leading to superior comfort levels.


EC FAN

Variable fan speed control 0-10VDC input


3RD PARTY

Can be controlled by a third party device


LOW PROFILE

Low profile indoor unit


WIDE ESP

Wide ESP range

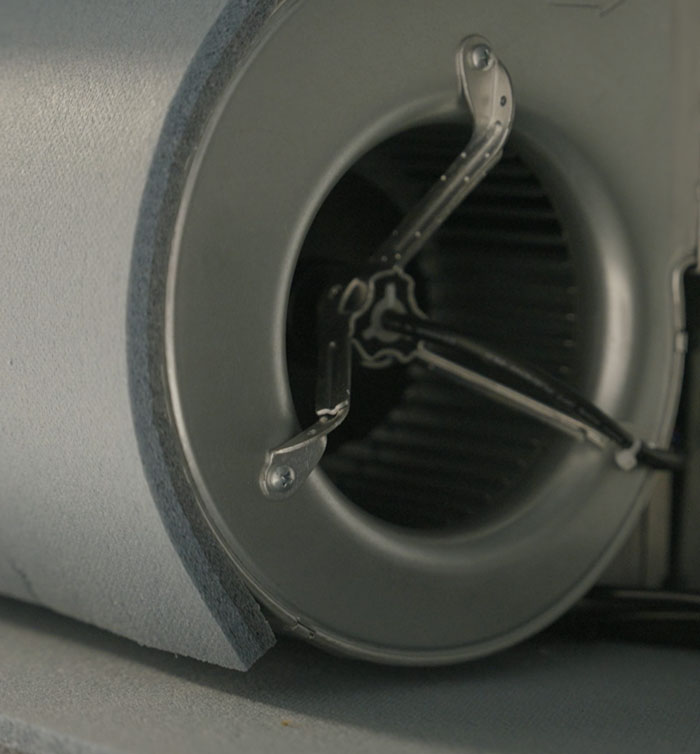

EC Direct Drive Fan Motors

EC technology motors provide higher efficiency and energy savings compared with AC motors. EC stands for Electronically Commutated, often referred to as a Brushless DC electric motor (BLDC motor) with integrated controller electronics.

The fan is able to be speed controlled by 0-10VDC or as a fixed amount of speeds selectable on the unit.

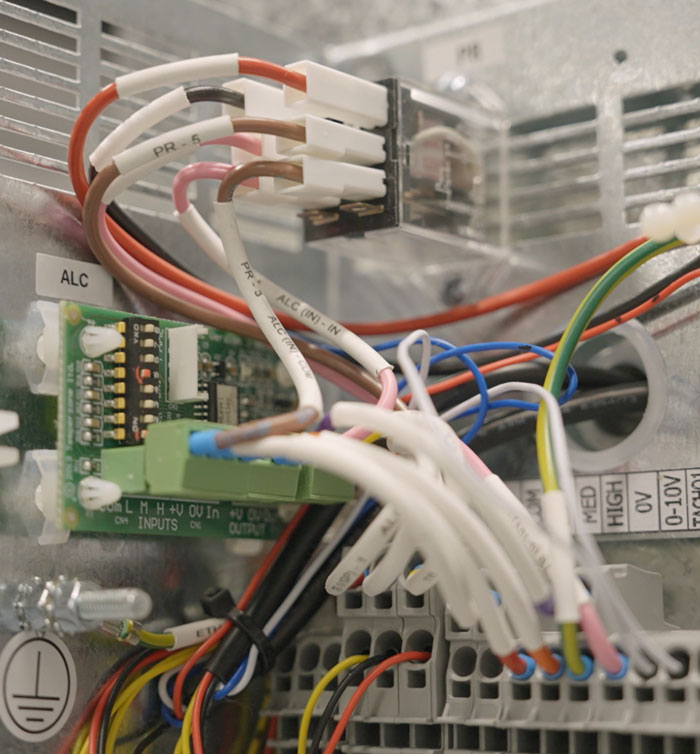

ALC Interface Controller

Each fan coil has an ALC interface controller that allows for external input of 0-10V DC control of fan speeds, or option of a three-speed local switch fitted.

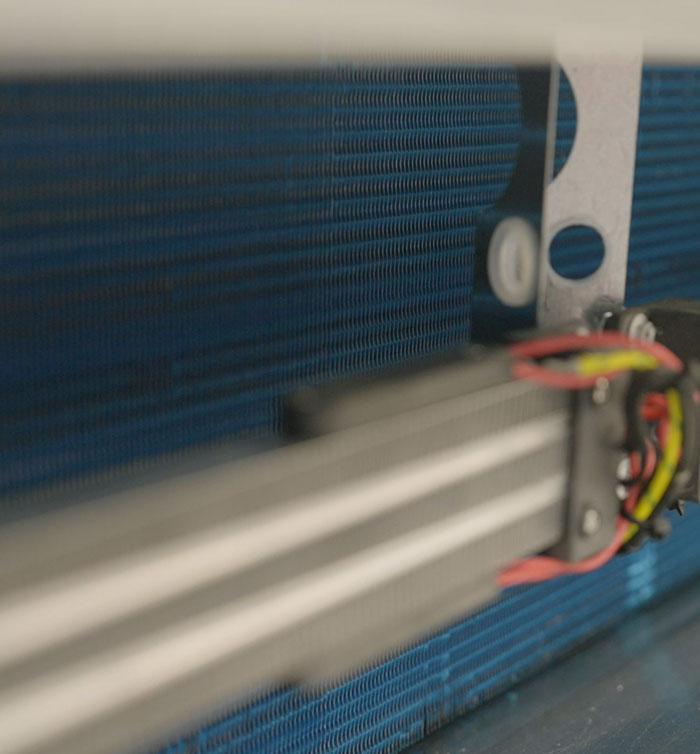

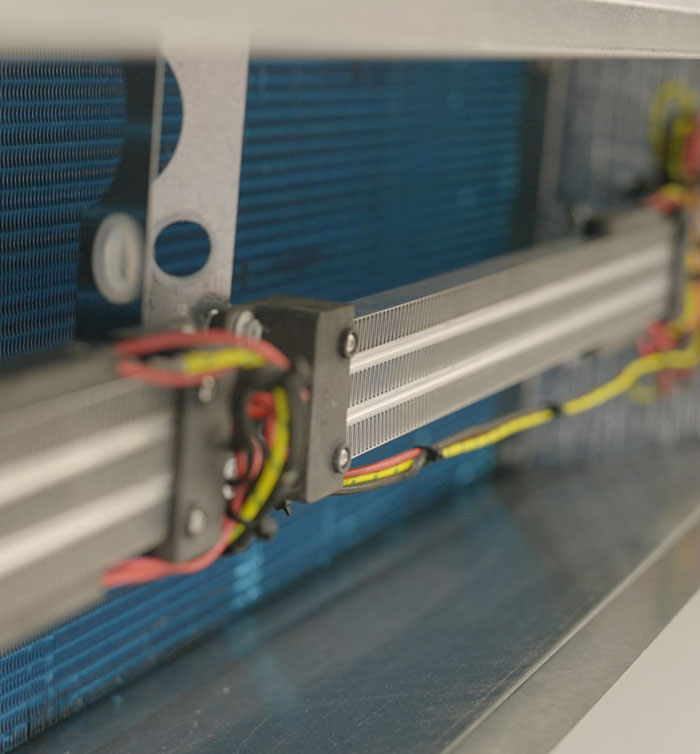

PTC Elements with SSR Relays

All electric heat units feature PTC elements, which adapts its output relative to air velocity. Due to this surface temperature control these safe self-limiting elements will not overheat.

Electric heat units also feature SSR element control relays, allowing either on/off silent operation or silent pulse operation of element control by customer and control systems installed.

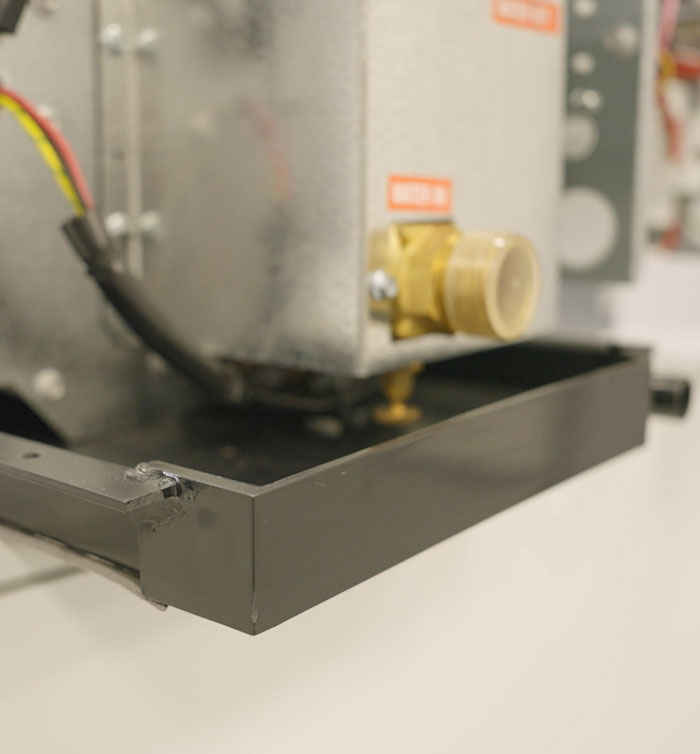

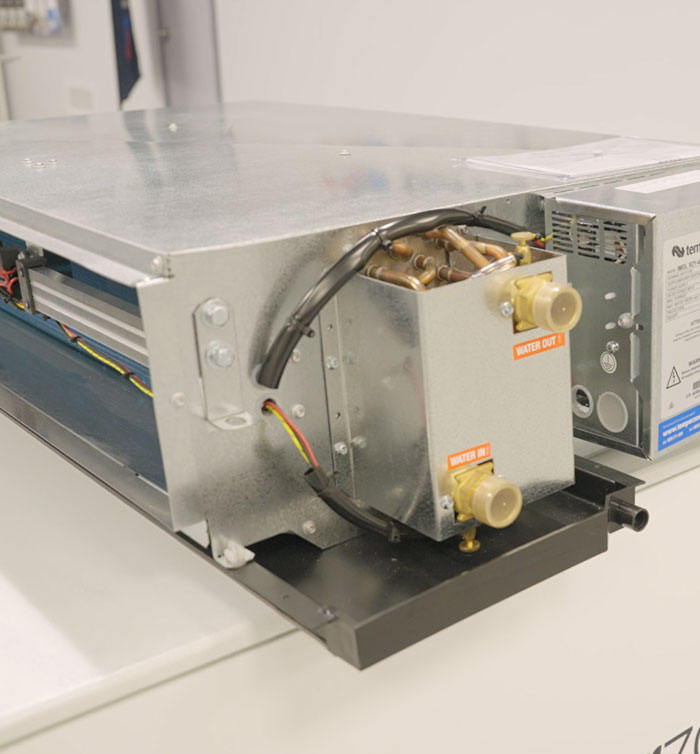

Seamless Drain Tray

To remove the chance of water leakage the drain pan is a single one-piece seamless PVC tray. These rigid moulded PVC drain trays are light weight and have a low thermal conductivity which reduces condensation.

Hydrophilic Coated Coil Fins

All units feature Hydrophilic coated coil fins which allow better shedding of moisture and also protects aluminium fins from corrosion.

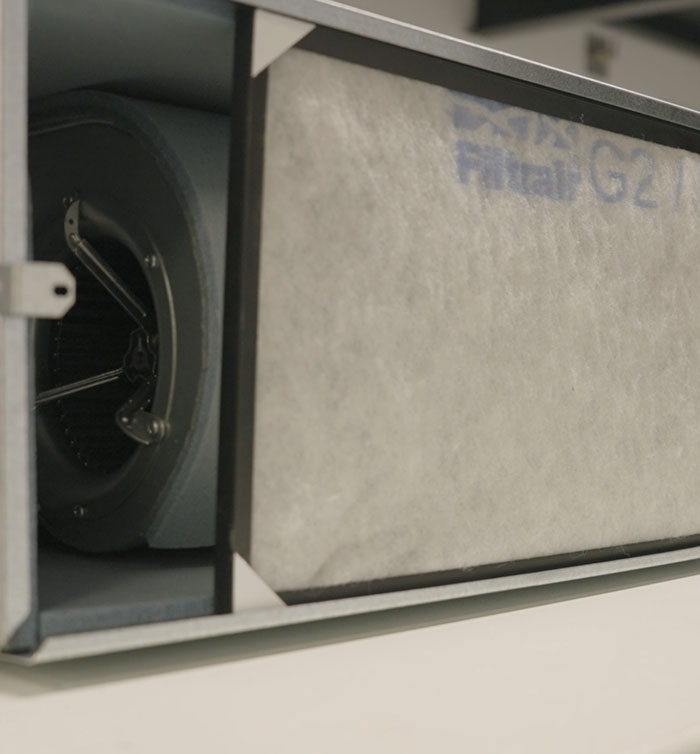

G2 Filters and Various Accessories

G2 filters come standard with the unit and are suitable in applications such as domestic, apartments and light applications where higher filteration is not required.

Various accessories are available with the Evolve series. These include:
•    Flexible hoses.
•    Spring mounting kits.
•    Supply air multi-spigot plenums for low profile units.

Fully Compliant with AS/NZS Standards

  • Drain tray compliant with AS3666.
  • All equipment safety requirements outlined in AS/NZS 60335.2.40 in conjunction with AS/NZS 60335.1, household and similar appliances - Electrical Safety.
  • All fan coils have been EMC tested in accordance with either AS/NZS CISPR14-1 (Residential) or AS/NZS 61000-6-8 (Commercial).
  • A minimum Protection rating of IP20, compliant with IEC 60529.
  • Seismic assessment ICC-ES AC156 with modification for AU/NZ (AS 1170.4 and NZS 1170.5.).
  • Acoustic performance measured in accordance with BS 848, sound power (SWL).
  • All units meet Greenstar requirements for access to coils.
  • Filters supplied to meet AS/NZS 1668.2.



Technical Data

IMDL 42Y, Evolve Chilled Water Fan Coil Unit

IMDL 62Y, Evolve Chilled Water Fan Coil Unit

IMDL 92Y, Evolve Chilled Water Fan Coil Unit

IMDL 132Y, Evolve Chilled Water Fan Coil Unit

IMDL 42Y, Evolve Chilled Water Fan Coil Unit

IMDL 62Y, Evolve Chilled Water Fan Coil Unit

IMDL 92Y, Evolve Chilled Water Fan Coil Unit

IMDL 132Y, Evolve Chilled Water Fan Coil Unit

IMDL 42Y, Evolve Chilled Water Fan Coil Unit

IMDL 62Y, Evolve Chilled Water Fan Coil Unit

IMDL 92Y, Evolve Chilled Water Fan Coil Unit

IMDL 132Y, Evolve Chilled Water Fan Coil Unit

IMDL 42Y, Evolve Chilled Water Fan Coil Unit

IMDL 62Y, Evolve Chilled Water Fan Coil Unit

IMDL 92Y, Evolve Chilled Water Fan Coil Unit

IMDL 132Y, Evolve Chilled Water Fan Coil Unit
