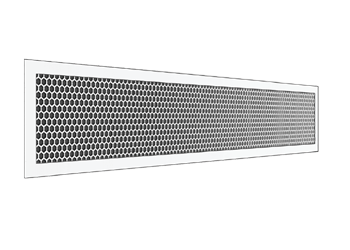

PMW-AD - Perforated Multistream Wall Diffuser
Patented high induction side-blow diffuser with manually adjustable multi-stream discharge pattern, for draught-free air supply from walls or bulkheads. The SMARTEMP Perforated Multistream Diffuser, type PMW-AD, is a high induction sidewall diffuser. Multi-stream airflow is discharged by a multitude jet elements of differing discharge direction, each manually adjustable to alter the diffuser air pattern.
PMW-AD
Volume flow rate range:
30 – 500 L/s (108 – 1800 m³/h)
Nominal length:
- 0.6 m
- 0.95 m
- 1.5 m
- Bespoke lengths ≤ 1.5 m available
Face height:
- 134 mm
- 173 mm
- 212 mm
- 251 mm
Throw:
- 1.3 – 17 m
Discharge height:
2.5 – 4 m
- Highly inductive multi-stream discharge for draught-free comfort.
- Multi-stream discharge direction manually adjustable via Allen key through diffuser face.
- Allen key adjustment prevents inadvertent discharge direction adjustment (eg by cleaners).
- Black plastic discharge elements (ABS, V0 fire rated) located behind the perforated discharge face break the airflow into a multitude of highly inductive individual air streams of differing discharge direction.
- Adjustable air streams have four different discharge angles, with the outer angles flatter than inner ones, and each may be rotated to one of six discharge directions, ensuring highly inductive, broad dispersion of the supply air flow for draught-free air supply.
- Perforated discharge face and frame of metal, painted to colour of choice.
Unique features include:
- High induction discharge provides enhanced draught-free comfort.
- Manual air pattern adjustment to optimise performance.
- Adjustment concealed and tamper proof.
- Flush face provides ease of cleaning.
