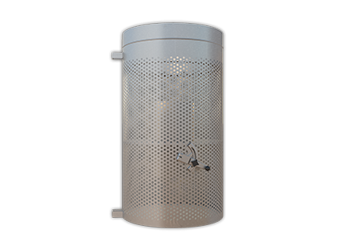

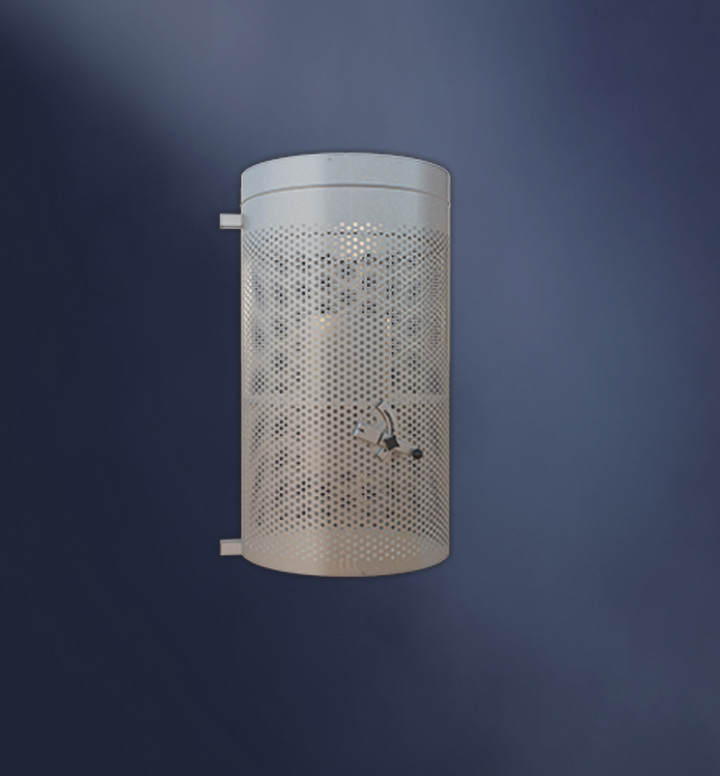

CP-AD - Cylindrical Plug-flow Diffuser
Adjustable pattern plug-flow air supply from up to 3 m discharge height in industrial applications for spot cooling/heating and to purge contaminants from work areas.
LMC-AD
Volume flow rate range:
- ≤ 2 800 L/s (10 000 m³/h)
Nominal Sizes:
- DN250
- DN450
- DN560
- DN630
Primary penetration radius:
- ≤ 14 m
Maximum supply air penetration radius:
- ≤ 20 m
- Low-turbulence plug-flow purges contaminants for enhanced IAQ.
- Well suited for spot cooling and heating
- Placement at approx. 3 m height or on the floor, free standing in room or in front of a pillar or wall
- Radial discharge pattern
- Stepless air pattern direction adjustment from slightly inclined to vertical downflow
- Adjustment by hand, electric actuator or self-acting thermal wax-bulb in the supply air stream
