ASF-AD - Auditorium Floor Swirl Diffuse

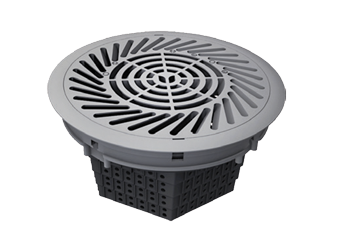

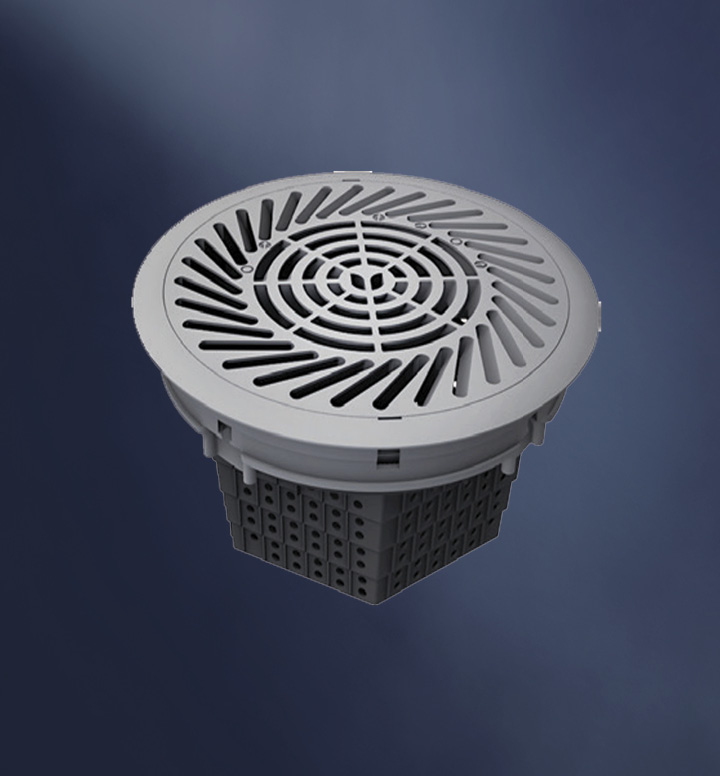

The SMARTEMP Auditorium Floor Swirl Diffuser, type ASF-AD, is a high induction, low air velocity, directional floor swirl diffuser for draught-free air supply with rapid air temperature equalisation from beneath auditorium or lecture theatre seating.
ASF-AD
Volume flow rate range:
5 – 17 L/s (18 – 61 m³/h)
Nominal Size:
- DN200
Discharge height:
0 m
Unique inclined swirl discharge pattern:
- Directs supply air rearwards, away from sensitive leg regions of seated occupants.
- Counteracts cascade effect of cool microclimate down seating tears, reducing draught threat from rear.
- Allows air to be directed towards underside of seats even if diffusers are marginally off-set from seat centres, preventing draughts between seats.
