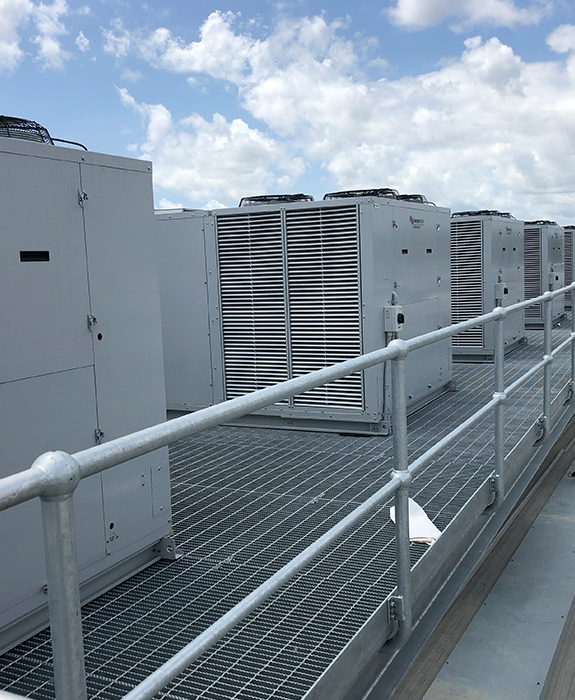

Eco Air Cooled Package Unit

One of the most energy-efficient on the market

A responsive and adaptive solution, the ECO Air Cooled Package Unit can adjust its own cooling or heating capacity in accordance with changing loads.

Thanks to a state-of-the-art variable capacity compressor, the ECO unit adapts to suit the requirements in the occupied space. It works hard only when needed, all the while offering the ability to provide optimum comfort.

  • Incorporating simple control technology, our systems are easy-to-use
  • High levels of comfort and energy savings can be provided regardless of climatic conditions
  • Use of variable capacity compressors allow a precise load variation response
  • High response levels to current load conditions are further guaranteed using Electronic Expansion Valves (EEV) and variable speed control of the indoor and outdoor fans.

ECO Package Unit

Available in:

Reverse Cycle (Heating and Cooling)

Capacity Range Nominal kW (Cooling):

44.9, 54.6, 69.7, 85.1, 96.0

Refrigerant:

R410A only

Dry Mode

Dry Mode and Super Dry Mode can only be achieved by temperzone ECO units as they utilise optimised Dual Electronic
Refrigeration Valve control (IP protected) to achieve exceptional dehumidification performance across the units full operation range.


BMS CONNECTIVITY

Modbus or BacNet TCP/IP connection allows you to monitor a wide range of operational parameters, view fault logs and even take control of the unit.


DIGITAL COMPRESSOR

Continuous modulation enables precise load control


EC PLUG FAN EFFICIENCY

Featuring EC plug fans that precisely adjust airflow to change in static pressure and provide superior efficiency.


ELECTRONIC VALVES

Electronic expansion valves for greater control and efficiency

Australian Made

Manufactured in our Sydney Factory, the famous Australian Made logo is the true mark of Aussie authenticity. It's Australia's most trusted, recognised and widely used country of origin symbol, and is underpinned by a third-party accreditation system, which ensures products that carry the logo are certified as 'genuinely Australian'.

Perfect for most applications

Combine a large commercial floor space and constantly changing cooling or heating loads and you will have a climate control challenge that temperzone’s air cooled package units are designed to handle even in the extremes of summer and winter.

The OPA (Air cooled package systems) range in capacity from 44.9kW to 96kW and offer a wide range of flexibility to meet most applications

EC Plug Fans

  • Improved efficiency and comfort through the supply of exact airflow requirements.
  • Up to 50% more efficient than belt driven fans.
  •  Standard component in ECO Air Cooled Package Units

Variable capacity control

Optimum control of superheat at varying load for outstanding comfort with indoor air temperature and humidity control.

Increased efficiencies by lowering head pressure and optimum feeding of heat exchanger coils.

Variable Outdoor Fans

  • High design criteria to meet tough local ambient conditions

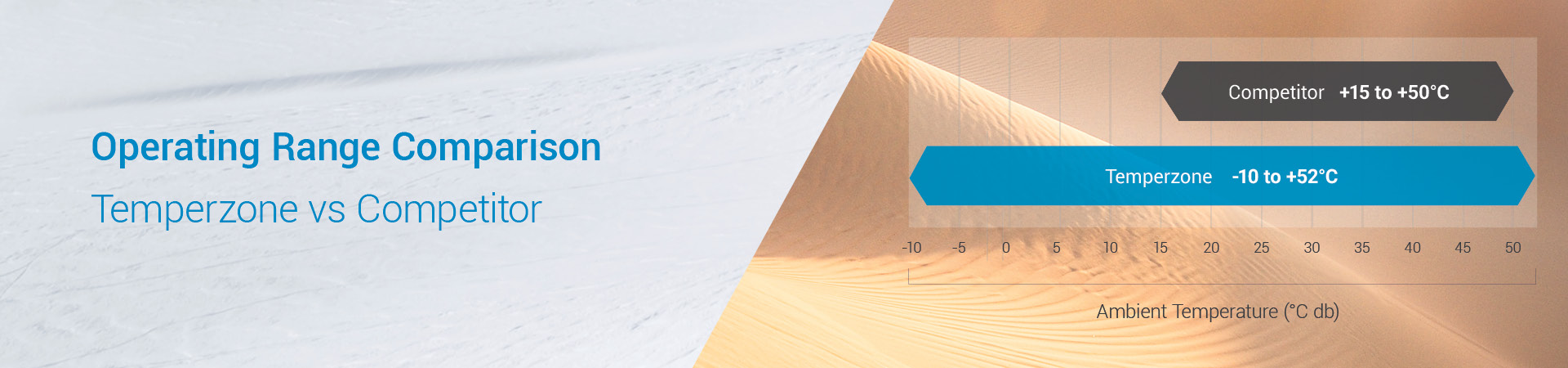

  • Extended system operating envelope with fully modulating head pressure control
  • Increased energy savings at part-load conditions with integrated speed control
  • High fan reliability with soft starting and low air noise
  • Quiet Mode for noise sensitive applications

Epoxy Coated coils

All Temperzone units come standard with epoxy coated indoor and outdoor coils for added protection in harsh enviroments. For corrosive environments, varieties of lacquered fin stock have been developed as an alternative to the more expensive copper fin stock.
Of the various coatings, for aluminium fin stock, epoxy has emerged as the preferred coating as protection against both chemical and salt laden air corrosion.The controlled application of epoxy, to the aluminium fin stock, results in a highly corrosion resistant epoxy film of only 4-5 microns.

Polyester Powdercoat

The sheet metal in temperzone units have the following treatment Metall Spray 315NS / Rinse / EcoSeal 800 / Powder Top Coat.Aluminium and Zinc-coated steel panels treated with Metall Spray 315NS and EcoSeal 800 process passed the performance requirements of AS/NZS 4506 for Atmospheric Classification D High Marine/Industrial Duralloy is a tough thermosetting powder coating that exhibits decorative and durable characteristics suitable for a broad range of interior and exterior product applications where excellent durability is required and with excellent colour retention.

Coil Guards

The powder coated louvered grille guard allows for superior protection in extreme weather conditions.The guard is designed to prevent coil damage and an accumulation of material build up. Combined with the epoxy coated coils it aids in keeping the heat exchange surface cleaner leading to better system performance and efficiency.


Dry Mode

Dry Mode and Super Dry Mode can only be achieved by temperzone ECO units as they utilise optimised Dual Electronic Refrigeration Valve control (IP protected) to achieve exceptional dehumidification performance across the units full operation range. EEV's provide optimum control of superheat at varying load for outstanding comfort with indoor air temperature and humidity control and increased efficiencies by lowering head pressure and optimum feeding of heat exchanger coils.

BMS Connectivity

No matter how simple or complex the climate control requirements, temperzone can offer a unit
that can be integrated into the building air conditioning infrastructure.Simplified BMS integration with Modbus or BACnet Communication Protocol.
