Delivering big results for small spaces
When commercial spaces are limited, there’s only one climate control solution that offers you the power to customise usage.
Incorporating DC technology, the Hitachi cassette range features inverter control and the ability to achieve superior operating efficiency. Ranging in Cooling capacity from 5kW to13kW, 4-way airflow ceiling cassettes are an economical and effective way of air conditioning open areas with high occupancy or traffic, such as shops, walkways, and restaurants.

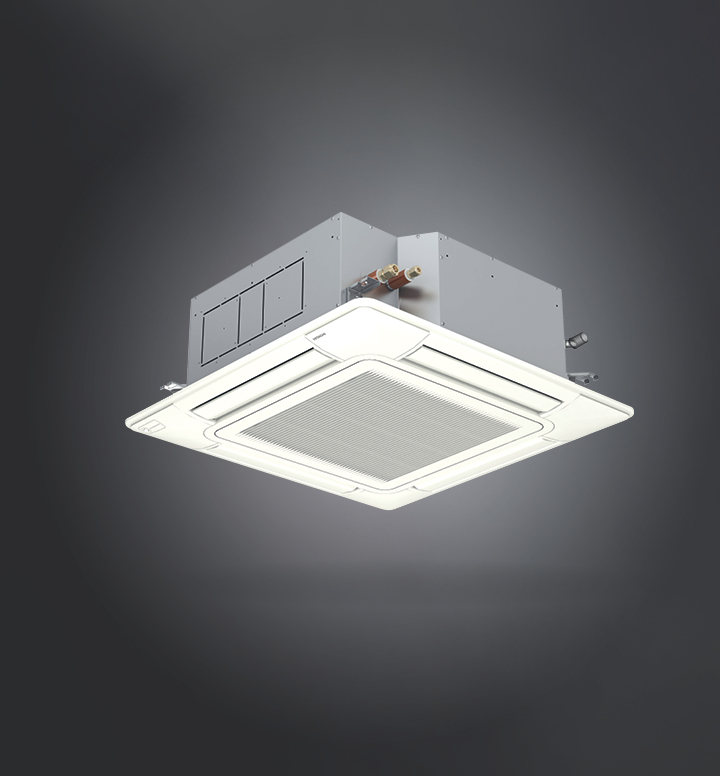

RCI/RAS 4 way cassette
Nominal Capacity Range (cooling): kW
7.1, 10.0, 12.5, 13.0
Demand control technology
Already highly efficient, Hitachi Premium Inverter models offer two additional ways to configure systems to achieve even greater energy savings.
4-way airflow cassettes are an economical and effective way of air conditioning open areas with high occupancy or traffic,
Automatically adjusts the airflow volume, direction and temperature according to the amount of activity. (Optional)
7-day timer with multiple set points
WARRANTY 5 YRS
Comprehensive 5 year warranty on parts and labour for your home or business
Overall dimension of 840X840mm and height of 298mm. A DC compressor offers improved performance during periods of extended operation. With the optional scilent iconic panel upgrade the unit can take on a whole new high end design look.

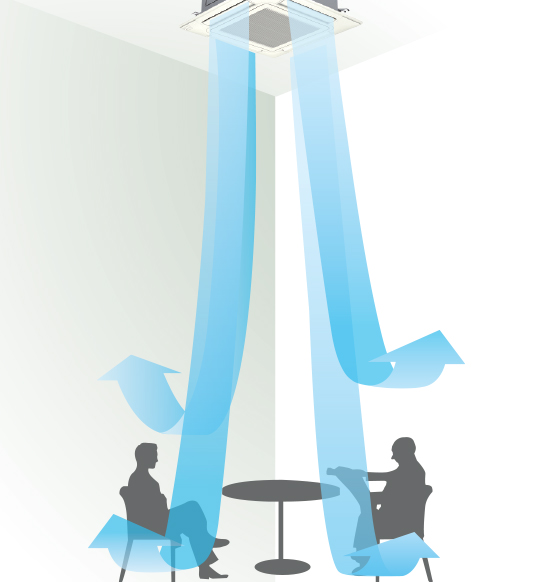

High air throw
High air flow, up to 4.2m on larger RCI models. With the optional motion sensor designed to detect the amount of human activity within a particular space, the motion sensor is an integral component
of the optional energy-saving technology. It maintains a comfortable indoor environment by automatically adjusting the airflow volume, direction and temperature according to the amount of activity. Savings can be further improved with individual operating function. In addition, operation can also be ceased automatically if a space remains unoccupied for more than 30-minutes.
Equipped with an automatic drain pump, compact cassettes can lift water from the condensate drain pan up to 600mm. An internal low-voltage drain pump removes accumulated condensate from the drain pan, even during unit operation. A float switch monitors the water level and automatically activates the pump as necessary. A silver ion antibacterial agent inhibits slime build-up, while a larger drain diameter assists in more efficient drainage.
H-Link II is a unique Hitachi communication system that can control multiple outdoor and indoor units from one location. It simplifies commissioning and service maintenance for installers and service engineers, and enables owners and occupiers to enjoy better system management through the ability to connect various types of central control options. Hitachi VRF, split systems, chillers and even wall mounts (via an interface card) can be connected to H-Link II.
The new structured silky flow louver is designed to reduce the discomfort caused by temperature irregularity and cold drafts. Individual control setting for each louver is available.
One touch panel
The unit has an easy one-touch panel so that the filter can be removed for cleaning.
