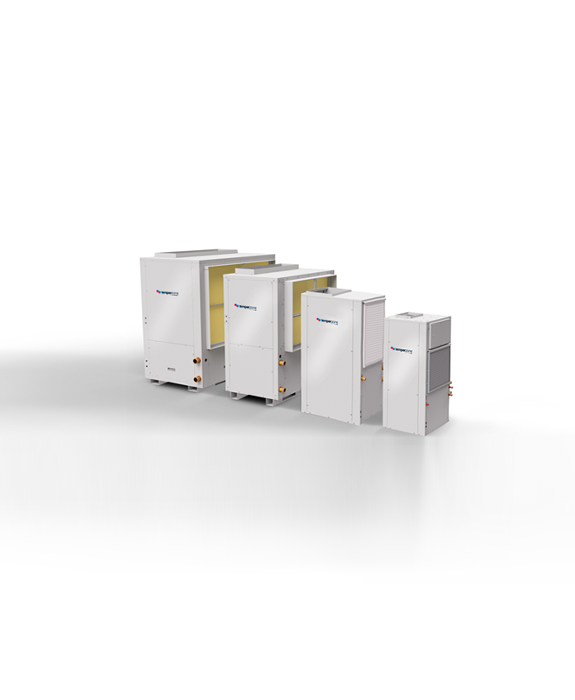

Vertical Water-Cooled Package (CWP)


ADVANCED POWDER COATING

High Marine/Industrial Duralloy is a tough thermosetting powder coating


EC PLUG FANS

Ec plug fans on larger models


SERVICE ACCESS

Built with service access in mind


WIDE ESP

Wide ESP range

The sky’s the limit with Temperzone water-cooled systems

Rather than having to plan your entire air conditioning layout in advance, Temperzone’s water-cooled modular technology offers you the unique ability to expand or adapt your system as a building’s commercial demands evolve.

The CWP-K Series of vertical discharge water cooled package units have been designed to provide year round comfort to the space they are serving.

CWP Vertical package Units

Available in:

Reverse Cycle (Heating and Cooling) Cooling/ Electric heat

Capacity Range (cooling):

6.27, 8.31, 9.63, 10.9, 13.14, 10.87, 13.14, 17.8, 21.74, 26.28, 37.44, 44.7, 57.5, 89.0, 101.6

Refrigerant:

R410A

Chaging with the times

The CWP-K Series of vertical discharge water cooled package units have been designed to provide year round comfort to the space they are serving.

Multiple CWP-K units are typically part of an overall hydronic system that incorporates some form of heat rejection equipment, usually a Cooling Tower or a Radiator cooler (Dry Cooler).

EC Fan

EC technology motors provide higher efficiency and energy savings compared with AC motors.
EC stands for Electronically Commutated often referred to as a Brushless DC electric motor (BLDC motor) with integrated controller electronics. The fan is able to be speed controlled by 0-10VDC or as a fixed amount of speeds selectable on the unit. Availible on CWP 63 ~ 178 models.

EC Plug Fans

  • Improved efficiency and comfort through the supply of exact airflow requirements.
  • Up to 50% more efficient than belt driven fans.
  •  Standard component in CWP 217 ~ 568 models

Epoxy Coated coils

All Temperzone units come standard with epoxy coated indoor and outdoor coils for added protection in harsh enviroments. For corrosive environments, varieties of lacquered fin stock have been developed as an alternative to the more expensive copper fin stock.
Of the various coatings, for aluminium fin stock, epoxy has emerged as the preferred coating as protection against both chemical and salt laden air corrosion.The controlled application of epoxy, to the aluminium fin stock, results in a highly corrosion resistant epoxy film of only 4-5 microns.

Polyester Powdercoat

The sheet metal in temperzone units have the following treatment Metall Spray 315NS / Rinse / EcoSeal 800 / Powder Top Coat.Aluminium and Zinc-coated steel panels treated with Metall Spray 315NS and EcoSeal 800 process passed the performance requirements of AS/NZS 4506 for Atmospheric Classification D High Marine/Industrial Duralloy is a tough thermosetting powder coating that exhibits decorative and durable characteristics suitable for a broad range of interior and exterior product applications where excellent durability is required and with excellent colour retention.

Technical Data

CWP 0217RKTY, 21.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0447RKTY, 44.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0568RKTY, 56.5kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0266RKTY, 26.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0374RKTY, 37.4kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0063RKSY, 6.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0083RKSY, 8.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0096RKSY, 9.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKSY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKTY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKSY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKTY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0178RKTY, 17.8kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0890RKT, 89kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 1030RKT, 101.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0217RKTY, 21.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0447RKTY, 44.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0568RKTY, 56.5kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0266RKTY, 26.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0374RKTY, 37.4kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0063RKSY, 6.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0083RKSY, 8.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0096RKSY, 9.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKSY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKTY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKSY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKTY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0178RKTY, 17.8kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0890RKT, 89kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 1030RKT, 101.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0217RKTY, 21.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0447RKTY, 44.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0568RKTY, 56.5kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0266RKTY, 26.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0374RKTY, 37.4kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0063RKSY, 6.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0083RKSY, 8.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0096RKSY, 9.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKSY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKTY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKSY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKTY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0178RKTY, 17.8kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0890RKT, 89kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 1030RKT, 101.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0217RKTY, 21.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0447RKTY, 44.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0568RKTY, 56.5kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0266RKTY, 26.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0374RKTY, 37.4kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0063RKSY, 6.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0083RKSY, 8.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0096RKSY, 9.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKSY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKTY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKSY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKTY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0178RKTY, 17.8kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0890RKT, 89kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 1030RKT, 101.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0217RKTY, 21.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0447RKTY, 44.7kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0568RKTY, 56.5kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0266RKTY, 26.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0374RKTY, 37.4kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 0063RKSY, 6.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0083RKSY, 8.3kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0096RKSY, 9.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKSY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0109RKTY, 10.9kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKSY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0132RKTY, 13.2kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0178RKTY, 17.8kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Top Connections

CWP 0890RKT, 89kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand

CWP 1030RKT, 101.6kW Closet Water Cooled Package Unit, R410A, Reverse Cycle, Std Hand
