Product Range Grows - Econex & Econex Pro Air-Cooled Package

The Econex air-cooled package range continues to expand and now includes the OPA 171 (16.8kW), OPA 211 (20.3kW) and OPA 680 (66kW) Econex & Econex Pro R32 Inverter Rooftop Package systems.

With a combined total of sixteen Econex and Econex Pro systems to select from, organisations can lower their carbon footprint and increase overall energy efficiency.

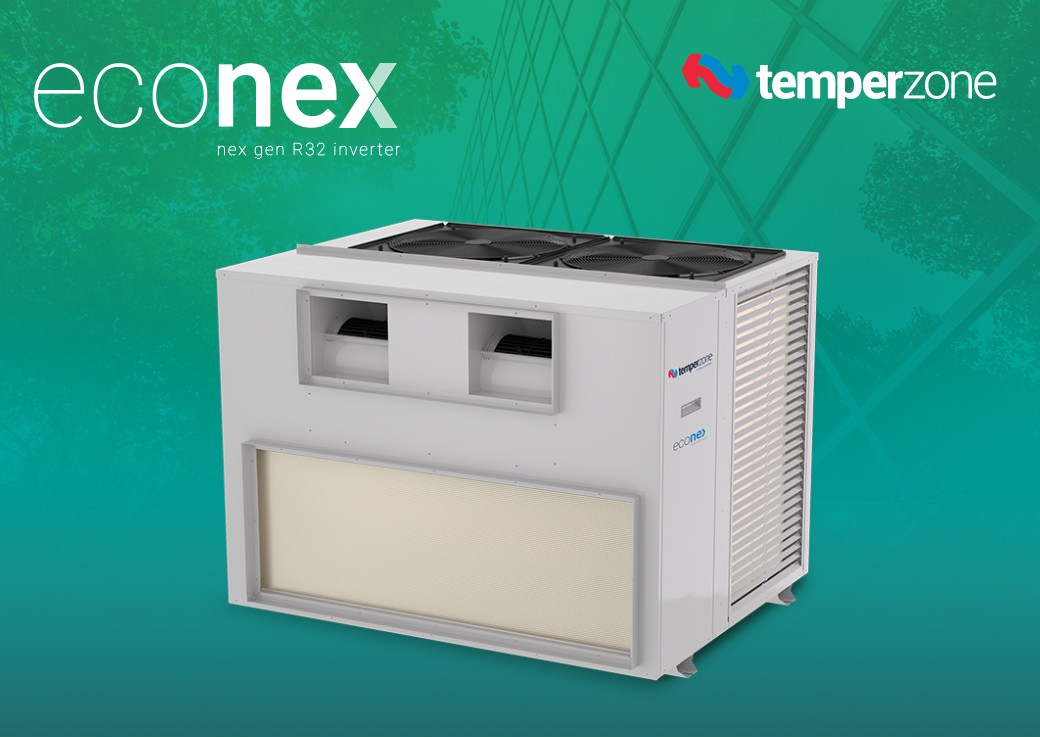

Econex and Econex Pro OPA units are innovative variable capacity R32 inverter rooftop packaged systems. These systems are designed to deliver exceptional seasonal energy efficiency through the implementation of leading system software and componentry.

Econex OPA have been designed to assist organisations in their carbon reduction efforts. The use of R32 refrigerant enables a significant reduction in refrigerant related GWP (Global Warming Potential) compared to R410A systems.

Econex Range

Nominal Cooling Capacity kW (Range)

OPA 171 - 16.8 (5.3 ~ 20.3)
OPA 211 - 20.3 (7.3 ~ 25.3)
OPA 250 - 25.4 (10.1 ~ 29.1)
OPA 350 - 35.9 (18.0 ~ 45.4)
OPA 450 - 44.9 (18.2 ~ 52.4)
OPA 560 - 55.6 (27.4 ~ 64.8)
OPA 680 - 66.6 (13.1 ~ 72.4)
OPA 820 - 80.7 (11.2 ~ 83.8)
OPA 970 - 92.5 (15.4 ~ 99.2)
OPA 1410 - 145.7 (15.9 ~155.4)
OPA 1710 - 169.7 (13.9 ~ 177.2)
OPA 2110 - 202.7 (32.1 ~ 208.8)

Main Features

• R32 Refrigerant
• Inverter Compressor Systems
  • OPA 171 – 560 single inverter system
  • OPA 680 – 970 lead inverter system with additional fixed speed second stage
  • OPA 1410 – 2110 lead inverter system with three additional fixed speed stages
• EC Plug fans (OPA 171-211 forward curved EC)
• EC Variable speed condenser fans (OPA 171-211 variable speed non-EC)
• Electronic Expansion Valves (EEVs)
• BMS connectivity
• Economy Damper & Spill Air* options - factory fitted^ (^excludes controls and not available on OPA 171 - 211) (*Spill air only available on OPA 1410 – 2110 units with bottom return)

Visit the Econex Product Page


Econex Pro Range

Nominal Cooling Capacity kW (Range)

OPA 171 PRO - 16.8 (5.3 ~ 20.3)
OPA 211 PRO - 20.3 (7.3 ~ 25.3)
OPA 680 PRO - 66.7 (14.4 ~ 79.0)
OPA 820 PRO - 82.5 (11.2 ~ 88.3)
OPA 970 PRO - 94.3 (16.0 ~ 102)
OPA 1410 PRO - 146 (11.8 ~ 189)
OPA 1710 PRO - 184 (14.6 ~ 206)
OPA 2110 PRO - 207 (27.0 ~ 239)

Main Features

• R32 Refrigerant
• Inverter Compressor Systems (OPA 171 - OPA 2110)
  • OPA 171 – 560 single inverter system
  • OPA 680 – 970 two inverter systems
  • OPA 1410 – 2110 four inverter systems
• EC Plug fans (OPA 171-211 forward curved EC)
• EC Variable speed condenser fans (OPA 171-211 variable speed non-EC)
• Electronic Expansion Valves (EEVs)
• Carel c.p.CO PLC Controller with Temperzone adaptive software loaded – fitted
• BACnet IP licence – loaded
• Economy Damper & Spill Air* options - factory fitted^ (^not available on OPA 171 - 211) (*Spill air only available on OPA 1410 – 2110 units with bottom return)
• Economy cycle control for factory fitted or externally mounted dampers
• CO₂ sensing available (sensors as optional accessories)
• S/A temperature & humidity sensor – fitted
• R/A temperature & humidity sensor – fitted
• Room temperature & humidity sensor – included (supplied loose)
• In-built integrated hot gas reheat option using modular reheat valve (OPA 1410 - 2110)
• External Heat Reclaim Coil control option
• Intelligent autonomous Humidity control
• Plug and play compatibility with an aftermarket after hours pushbutton

Visit the Econex Pro Product Page
