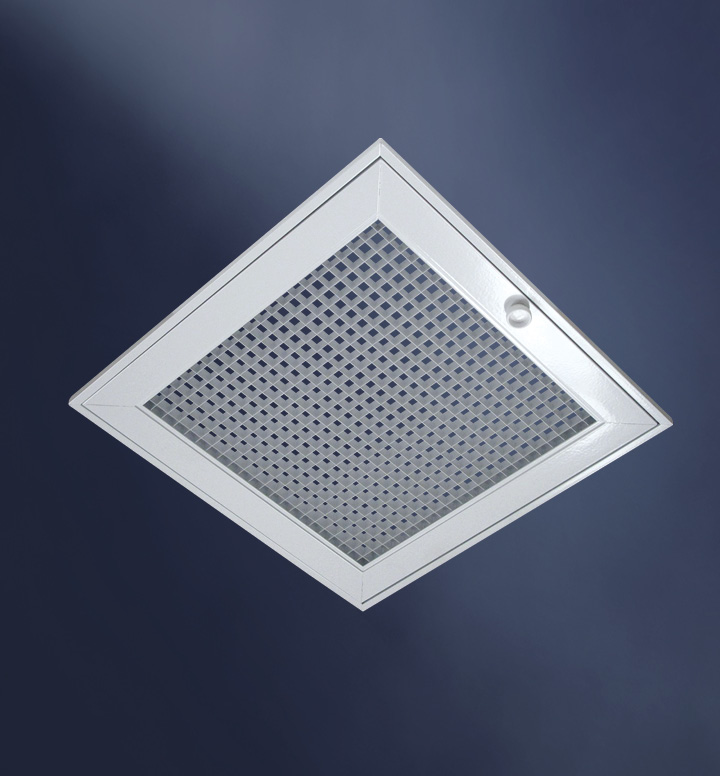

EGC-5 Series Egg Crate Grille
The EGC-5 Series egg crate grillers have a stylish frame with squared aluminium lattice (egg crate) return/exhaust air grille, suitable for wall or ceiling mounting.
EGC-5 Series
Volume flow rate range:
10 - 4,700 l/s
Nominal Sizes
100 - 1800mm square or rectangular
- There are 3 choices of core style – straight, slant or perforated. The slant core (EGC-5S) has the advantage of obscuring the ceiling interior from most viewpoints.
- Egg crate grille can be fitted directly to T-rail suspended ceiling systems.
- The perforated face model (EGC-5P) has an easy to clean face.
- The hinged model (EGC-5_/HF) provides the convenience of a filter and/or access through the sub-frame opening.
