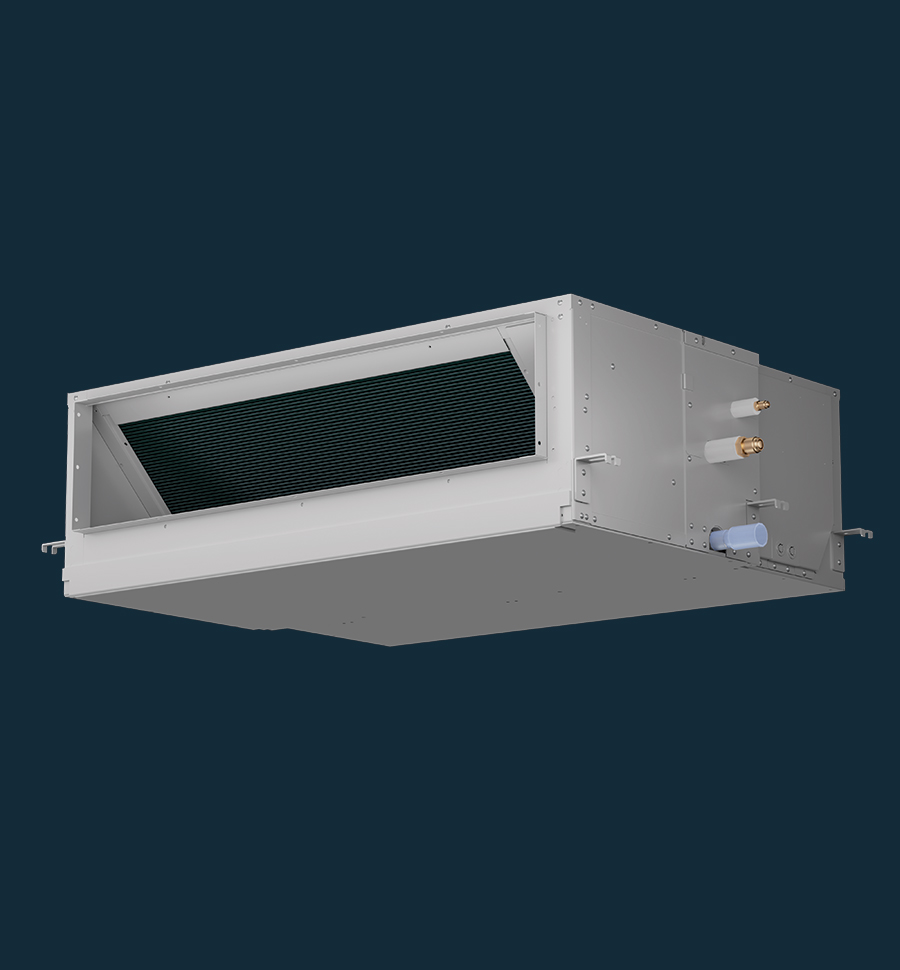

airCore700 High ESP Ducted
Nominal Capacity kW
Cooling (range) / Heating (range)
7.2 (2.5~8.6) / 8.6 (3.5~10.4)
10.0 (3.2~12.0) / 12.5 (3.5~14.0)
12.5 (4.0~14.2) / 14.0 (4.0~16.2)
14.0 (5.0~16.0) / 16.5 (5.5~18.0)
16.0 (6.0~18.0) / 18.0 (6.5~20.0)
Refrigerant:
R32
airCore700 Light Commercial Inverter AC System
The airCore700 stands as Hitachi’s flagship light commercial split system range. It delivers outstanding cooling and heating performance, showcasing a wide capacity range and efficient operation in diverse ambient temperatures, while guaranteeing uncompromised comfort. Utilising R32 refrigerant, airCore700 units have a lower global warming potential compared to R410A refrigerant products.
Peace of Mind with a 6 Year Warranty
The airCore700 ducted split range comes with a comprehensive 6 Year Warranty on parts and labour, so you can be assured of the reliability and quality of your airCore700 system.
Extreme Temperature Operation
Designed for the harshest conditions, Hitachi airCore700 units are designed to operate in ambient temperatures from -15°C to 52°C to ensure you’re always comfortable, whatever the weather.
Frostwash Self-Cleaning Technology
All indoor ducted units are equipped with FrostWash. FrostWash freezes the dirt and dust trapped in the indoor unit heat exchanger, which is drained away with the condensate when it defrosts – effectively cleaning the heat exchanger and helping to safeguard long-term performance by maintaining good airflow. FrostWash can be activated manually or automatically at scheduled intervals.
R32 low GWP Refrigerant
Reducing environmental impact, airCore700 systems use R32 refrigerant which has a lower global warming potential (GWP) than traditional R410A refrigerant.
Separable Ducted Indoor Units
airCore700 high esp ducted indoor units feature an easily separable design, allowing effortless removal and reassembly of the fan cover from the heat exchanger compartment using a simple 'one-click' mechanism. This disassembled design is perfect for installations in tight spaces like rooftop attics and narrow areas, simplifying delivery and installation for greater convenience.
Single Phase & Three Phase
The 7.2kW system is available as Single Phase only and the 10.0kW to 16.0kW outdoor units are available as Single or Three Phase.
Smart design makes installation easy
The outdoor unit of airCore 700 is designed with piping options available in four directions, allowing for flexible installation based on the specific situation. The unit accommodates up to 75m of piping run and 30m in height, this offers a great deal of flexibility in terms of installation.
High Static Performance
airCore 700 high static pressure ducted systems are suitable for high static applications applications with models up to 310Pa external static pressure.
A wide ESP range means airCore 700 is suitable for spaces with many discrete areas, including corners and recesses. Multiple outlets can be connected to the ducted unit to ensure a uniform airflow around a complex space. A system can be set up in a short time and will run reliably into the future.
Advanced Control
The power is in your hands with our award-winning airPoint Room 700 controller option. With simple navigation and feature rich functions and settings, offering advanced control with your airCore700 system.
Control your AC from anywhere with our airCloud Go* app!
Connect your airCore700 to airCloud Go via Wi-Fi and experience the freedom and convenience of saving energy and enhancing comfort. The app is available in 21 languages and offers features such as Voice Control, Operation Schedular and Quick Setup.
*airCloud Go SmartFence & Energy Monitoring not available with airCore700
Premium Zoning Systems with Modulating Damper Control
The Premium Zoning Kit is compatible with the airCore700 ducted system, designed for both medium-static (small homes) and high-static (large homes) indoor units.
Individual Room Temperature Setpoint
Allow connection up to 8 zones. Possible to connect each zone with Thermostat for comfort control.
Capable of optimising airflow into each zone
Optimising comfort with modulating damper control for each zone and regulates airflow based on set point temperature on thermostat.
Zoning Control
- PC-ARFG2-Z controller enables central control of all zones through the Premium Zoning Kit. When enabled, the home screen with zone control icon and set temperature in each zone will be displayed.
- Monitoring all individual zone status is available from the zone control screen. ON/OFF, Set temperature, Fan speed can be set for each individual zone from PC-ARFG2-Z.
- Weekly operation schedule can be set to control the zoning system. Individual zones can be selected to program different operation times and temperatures in each.
