Clever MT Range of Standardised Air Handling Units
The MT Air Handling series offer the same high quality as the Clever MC Series with the added benefit of standardisation.
Temperzone air handling units have been leading the New Zealand market with the highest quality, most customisable air handlers available. The MT standardised air handling unit range offers the same high quality features you’ve come to expect while giving you the certainty to aid quick and easy HVAC system design, and the flexibility to rely on shorter lead times and optimum savings.

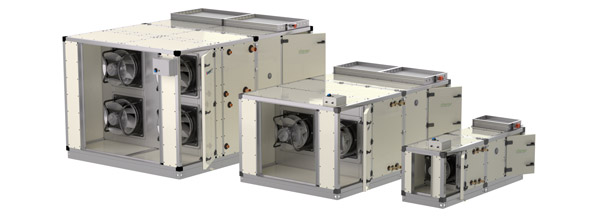

Clever MT Air Handling Unit
Standardied AHU Range
Available with:
- 4, 6 & 8 Row Cooling Coil
- 1 & 2 Row Heating Coil
- 750 - 15,000 l/s nominal airflow
Features
- Full Aluminium Design
- Double Skin + Thermal Break Panels
- High Efficiency EC Plug Fans
- Epoxy Coated Coils
- Ebox Wiring Integration
- EL100 Opposed Blade Dampers
- Air Filtration options including G4 rated panel filters, F7 filter bags and F9 cartidge filters
Standard Pre-Engineered Design
MT Air Handling units offer pre-engineered standardised options that allow you to configure your unit to suit your requirements.
- Standard or Opposite Hand (all piping, access doors, drainage, gauges and electrical)
- Horizontal or Vertical Supply Air
- Eleven combinations available for chilled water and/or hot water coils
- Horizontal or Vertical Return Air Plenum
- Return Air / Outside Air Mixing Dampers

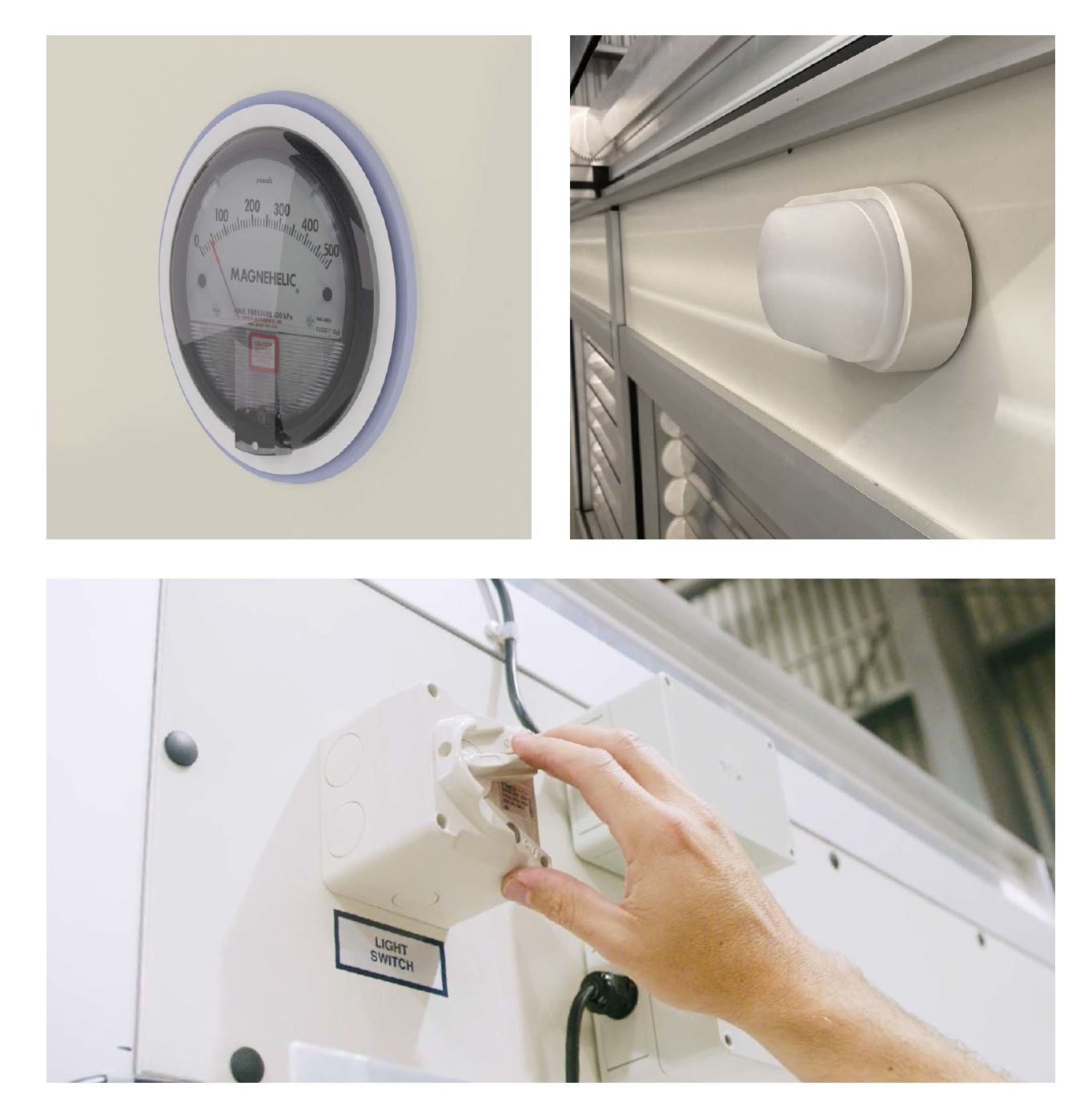

Standard Accessory Options
The MT AHU range comes with standardised accessory options.
- Optional filter pressure drop, Magnahelic gauge
- Internal lighting
- Inspection windows
- Filters are sold separately (G4, F7 and F9)

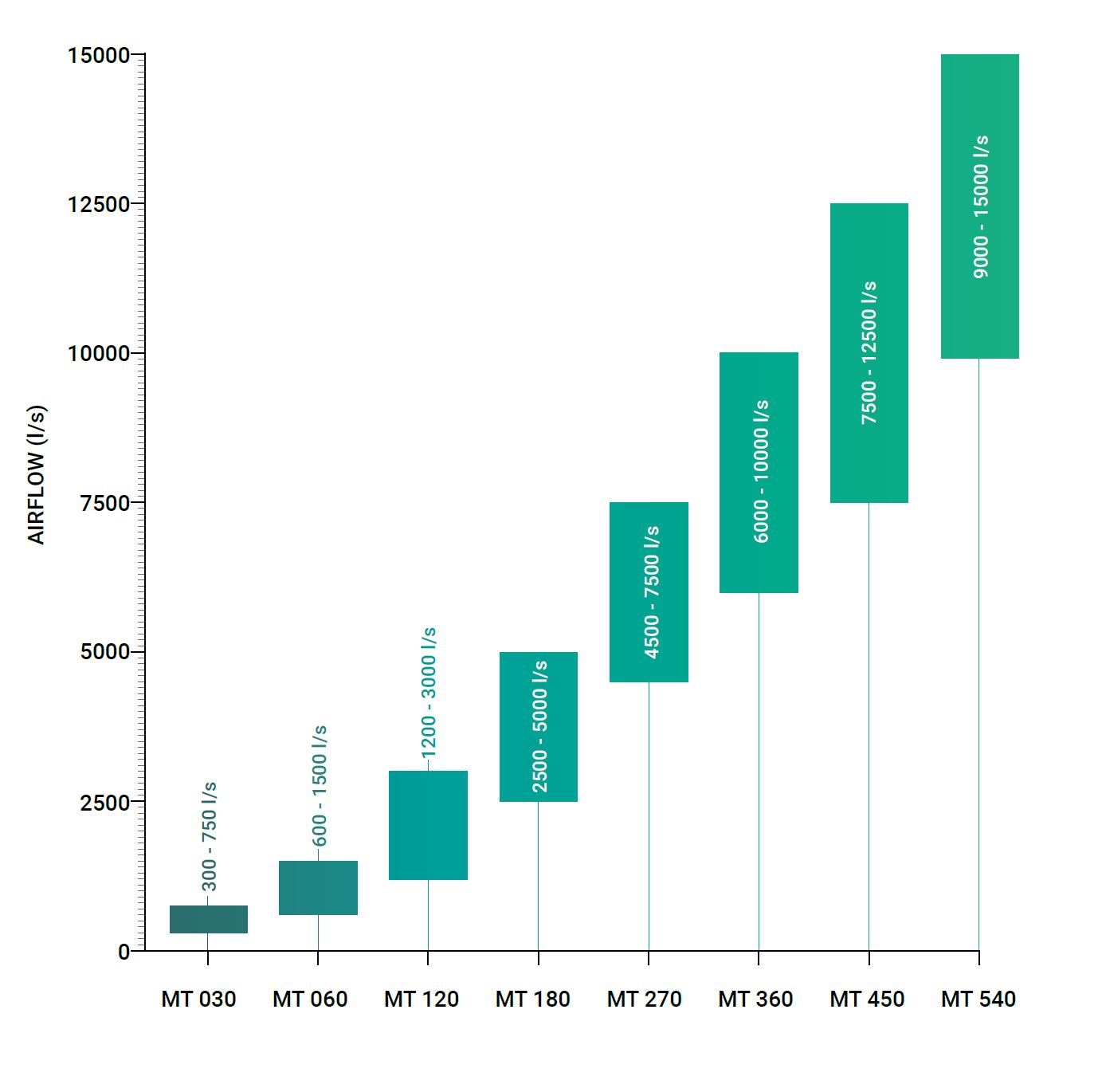

8 Models Covering a Wide Range of Airflows
The Clever MT AHU range offers a wide range of airflows to meet most applications.
The corresponding graph shows the Air Flow Range Minimum to Nominal Maximum.

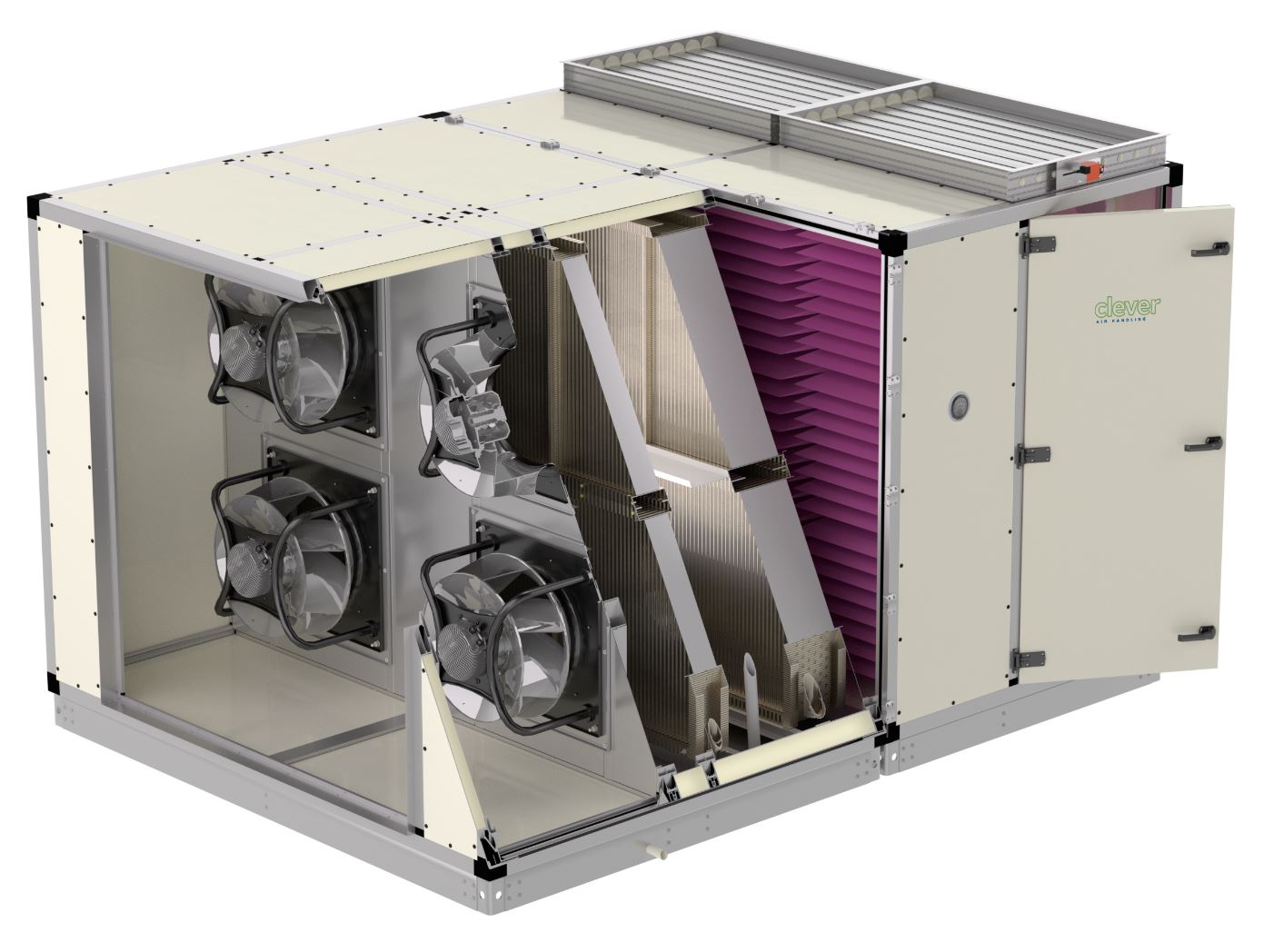

Full Aluminum Design
MT Air Handling units are of superior design with full aluminium construction for exceptional corrosion protection and supierior lighter weight flexibility.
- Anodised aluminium framework
- Outer and inner marine grade aluminium pre-painted panels
- Anodised aluminium base channel
Tropical Profile + Thermal Break
MT Air Handling units are of superior design with exceptional performing thermal barrier properties.
Tropical Profile, Thermal Break: T2 / TB2 Tropical 65 x 50
- Thermal break 65mm profile & 50mm panels
- Nylon corner node
- Anodised profiles and base channel
Double skin panels with injected foam infill for superior insulation.
- External marine grade 5005 aluminium linings, PVC 50mm separator
- Injected polyurethane foam insulation, >45kg/m3
- Panel thermal conductivity <0.024 W(m-K)
Features
- Exceptional thermal performance
- Tropical system to prevent condensation in high humidity locations or with very low supply air temperature
Superior Design

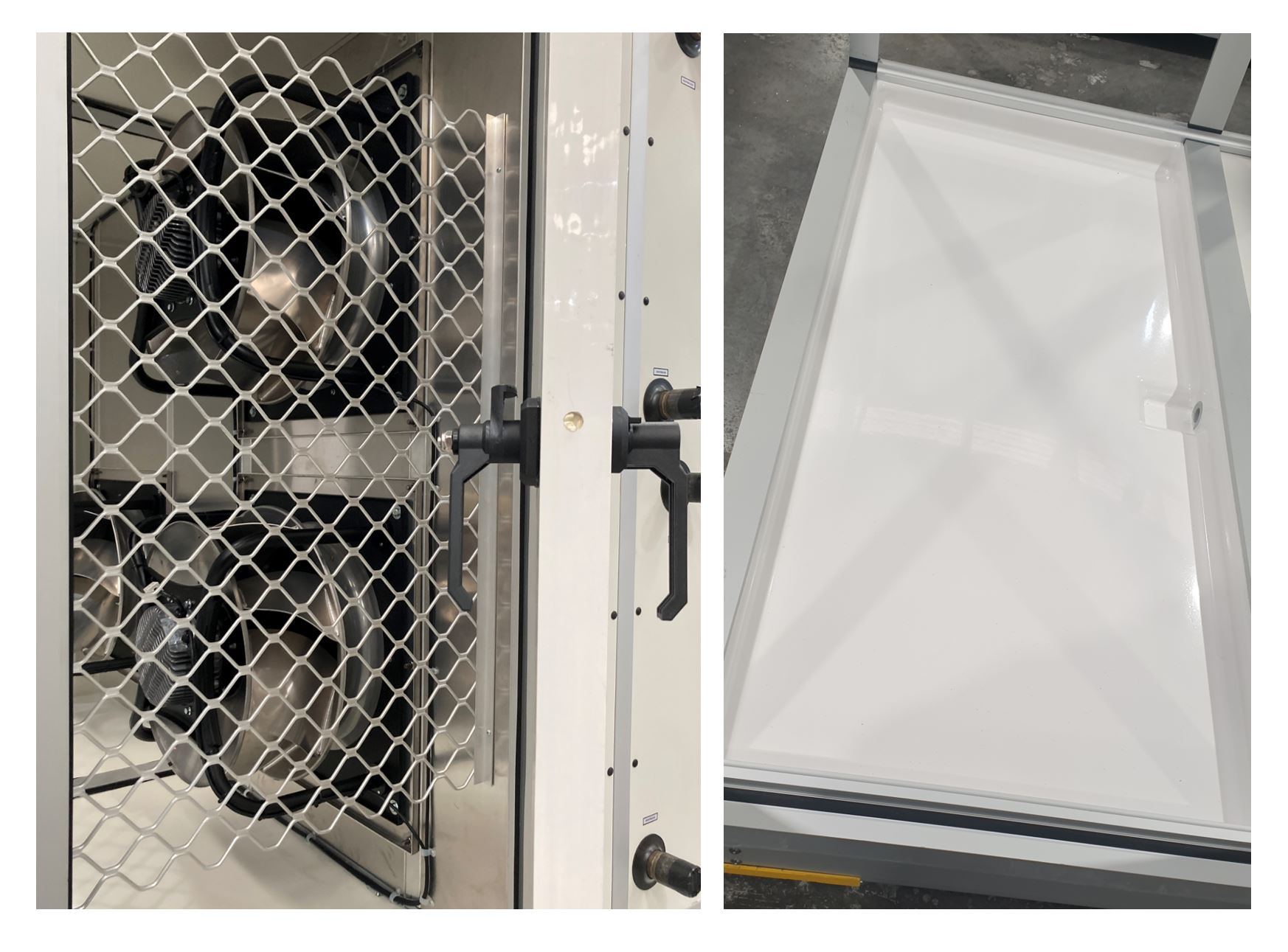

Internal Doors
- Outwards opening doors with multiple nylon handles for airtight seal
- Door handles have internal handles
- Lockable fan door handle for added safety
- Mechanically fixed aluminium mesh door guard
Corrosion Resistant Sloping Drain Trays
- Moulded ABS tray with PVC condensate connection
- 2 way slope to single point - zero water ponding

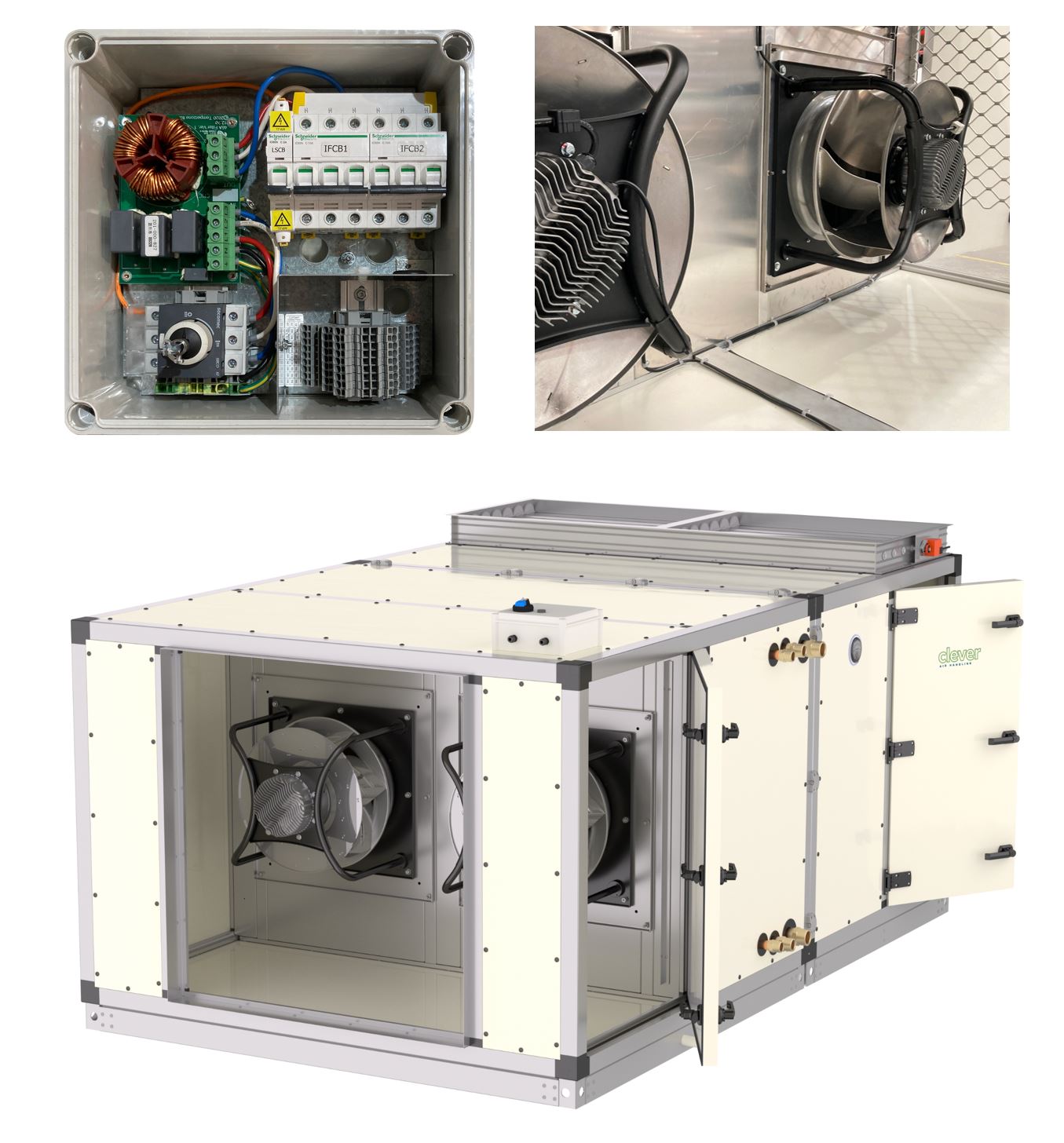

Superior Performance
MT Air Handling units utilise energy-efficient, reliable componentry to ensure the delivery of superior performance.
- Multiple coil combinations available using 1, 2 and 4 row coils for chilled water or LTHW applications options
- Backward curve centrifugal impeller EC Motor
- EBox wiring integration as a standard
- CPG-AV Controller - Pressure and volume
- CTG-AV Controller - Temperature

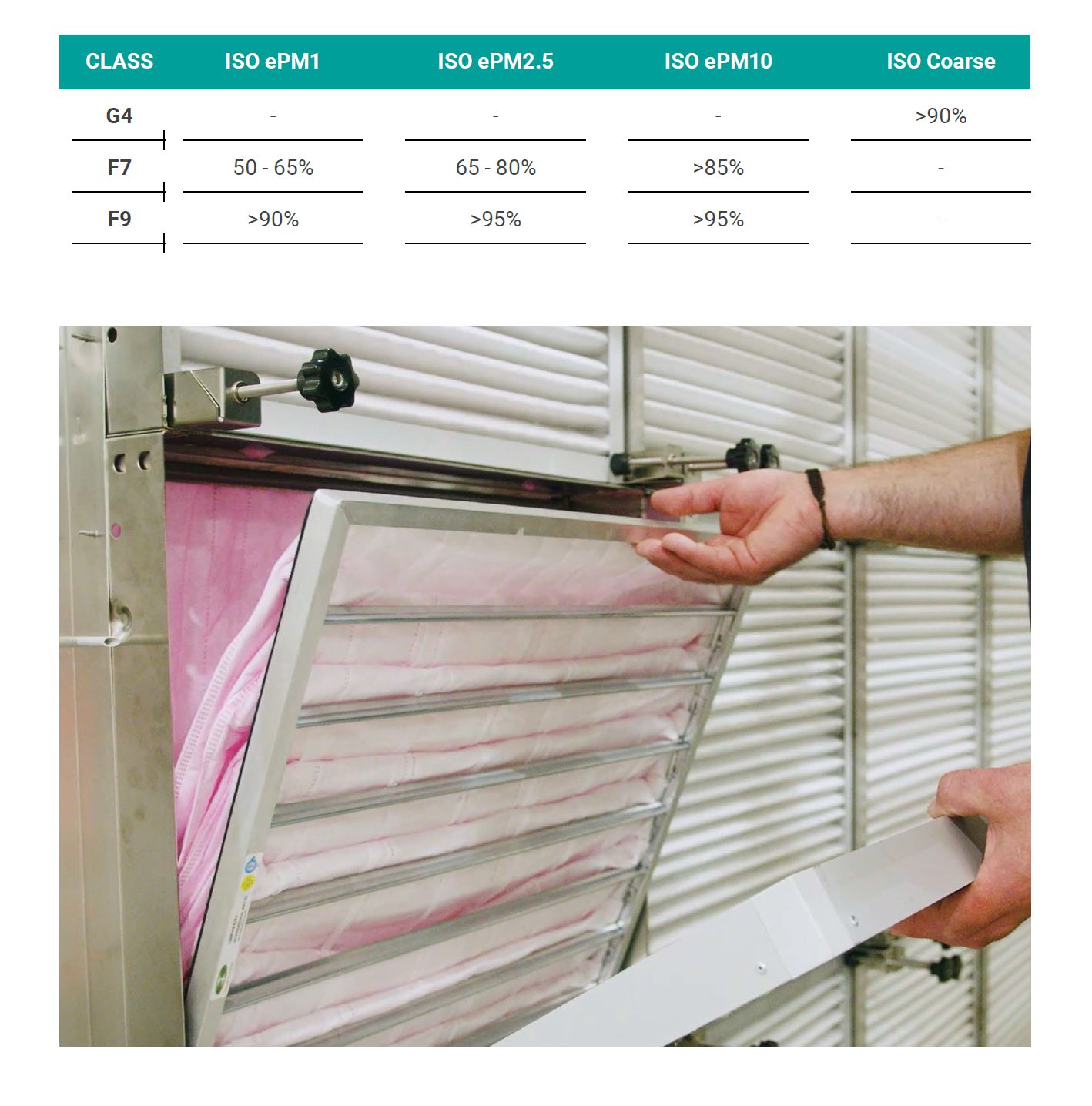

Air Filter Options
Standard MT Air Handling units offer high specification filtration for clean hygienic, indoor air. ISO 16890 standard certified media
G4 Panel Filter
- 46mm aluminium panel
- Washable media
- 1.2 m2 synthetic media
F7 Bag Filter
- 600mm 8 pocket
- 25mm header
- 5.7 m2 synthetic media
F9 Compact Final Filter
- 292mm cartridge
- 25mm header
- 18.8 m2 glass fibre media
