SAT 3

Innovative comfort

This controller has been designed to maintain a high level of comfort for room occupants. Emphasis has been placed on providing controls that are easy to use. Use of the Auto and Timer function settings allows you “to set it and forget it”.

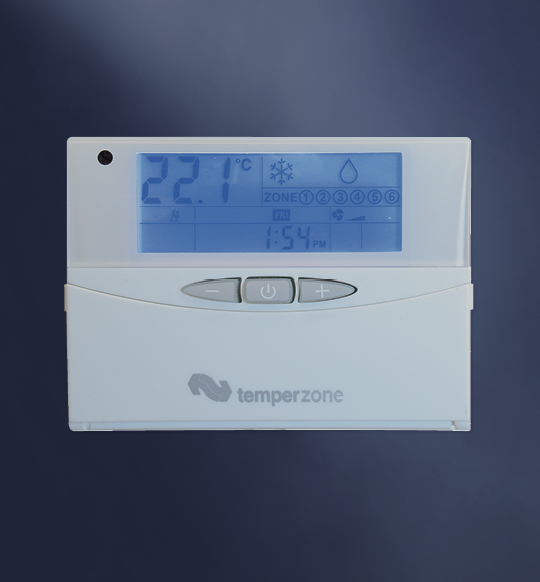

SAT3 Room temperature controller

Available in:

White keypad with optional zone realy board

Compatible with:

  • ISD/OSA 87–324 systems c/w IUC/UC8
  • HWP 36–275 c/w UC8

Innovative technology

Not only does the SAT3 make a great standard system controller, but when combined with the Temperzone Zone Relay Kit - innovative functions such as: self damper calibration, independent zone modes and temperature control and EC fan variable control become active. Combined with variable zone dampers, the perfect zone temperature is maintained.


AUTO MODE

Automatically chooses the right mode for perfect comfort


OPTIONAL ZONING

Up to 6 modulating individually controlled zones


QUIET MODE

Reduces the noise of the outdoor unit


TIME CLOCK

24/7 time clock function

Functions

Backlit LCD Display Controller. Add an additional wall controller in applications ie two storey homes.

  • 7 Day Time clock operation
  • Multiple colour screen (depending on mode)
  • Maintains personal settings in the event of power failure
  • Auto Restart on resumption of power after power failure
  • Override function

Independent Temperature Control

The temperzone Zone Control kit is a retro fit option to allow up to 6 zone dampers to be controlled from the temperzone SAT-3 wall plaque. It is compatible with standard 24 volt drive open/drive closed damper motors, and ISD 116–324KYX models only

  • Individual temperature control for each zone
  • Set airflow for each zone
  • Set up operating schedule for individual zones to suit your lifestyle

Self Damper Calibration

When the optional zone control board is installed, the system automatically calibrates the dampers when power is removed from the unit.

This can also be done at commissioning. The screen displays A1 whilst this function is occurring.

Modes

  • Set up an operating schedule for individual zones to suit your lifestyle
  • Maximum of 6 zones available
  • Individual temperature control for each zone
  • Set airflow for each zone

Technical Data

Thermostat SAT-3 Wall Plaque

Thermostat SAT-3 Wall Plaque

Thermostat SAT-3 Wall Plaque

Thermostat SAT-3 Wall Plaque
