High Performance Low GWP systems
Temperzone Templite Ducted Split Systems are leading the way in providing low Global Warming Potential (GWP) commercial R32 air conditioning solutions.
Combining the latest Inverter Technology and R32 refrigerant, our Templite range provides the best of both worlds - increased efficiency and performance - with reduced GWP.

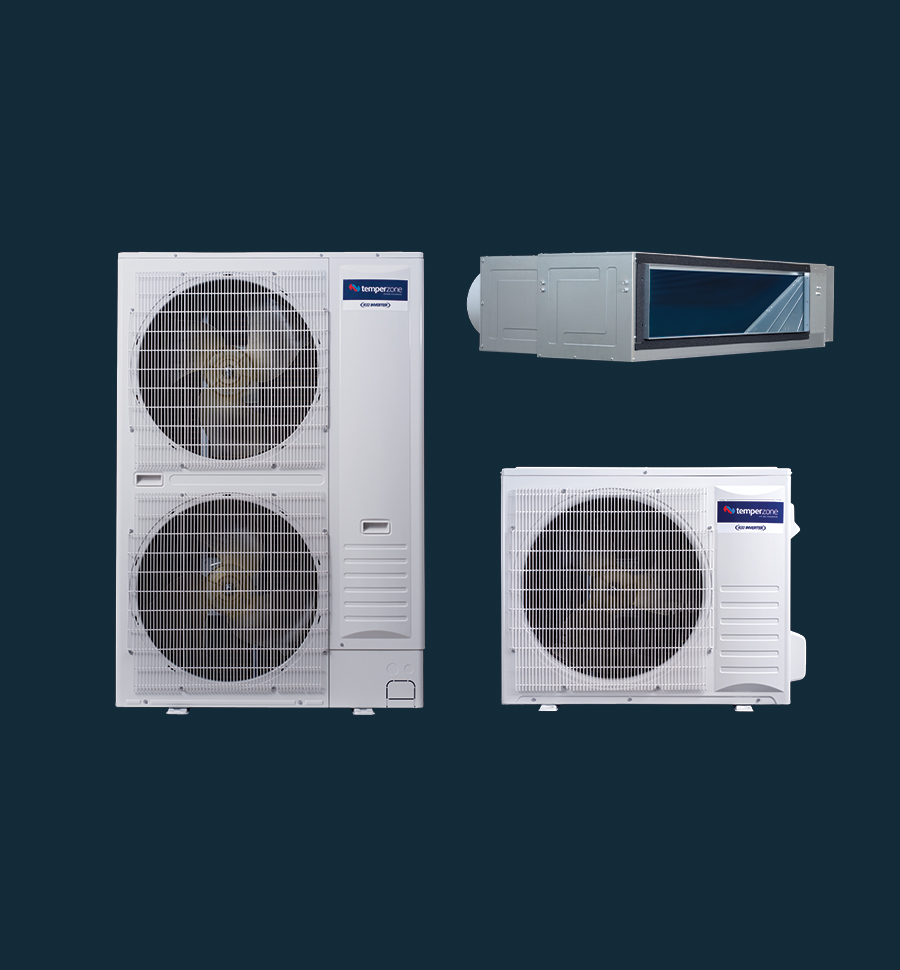

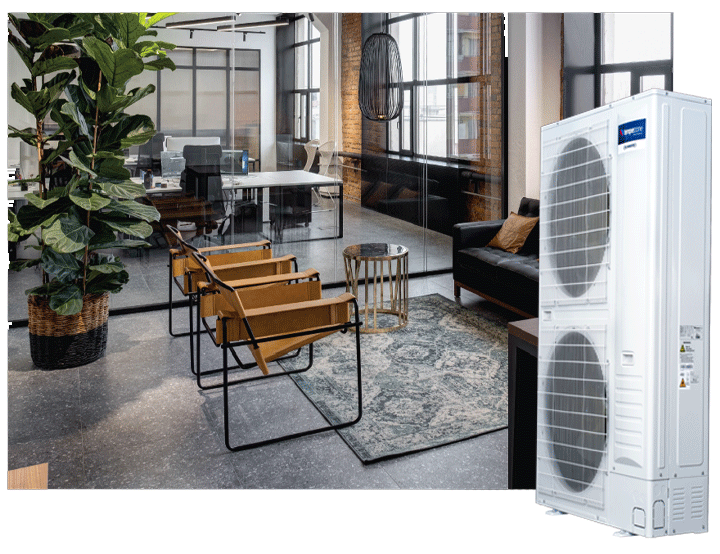

Templite R32 Inverter Ducted Split
Available in
Reverse Cycle (Heating and Cooling)
Capacity Range Nominal kW (Cooling)
• ISDT / OSAT 85 - 8.5 kW (4.2 kW~11.0 kW)
• ISDT / OSAT 100 - 10.0 kW (4.2 kW~11.5 kW)
• ISDT / OSAT 130 - 13.0 kW (6.0 kW~17.0 kW)
• ISDT / OSAT 145 - 14.5 kW (6.0 kW~18.0 kW)
• ISDT / OSAT 160 - 16.0 kW (6.0 kW~18.5 kW)
Refrigerant
R32
High Performance
These low GWP Ducted Split Systems offer increased performance with extra wide capacity ranges for complete specification flexibility.
EC FAN
Variable fan speed control 0-10VDC input
ELECTRONIC VALVES
Electronic expansion valves for greater control and efficiency
INVERTER COMPRESSOR
Inverter compressor for superior part load performance.
R32 REFRIGERANT
R32 refrigerant has a significantly lower GWP than R410a

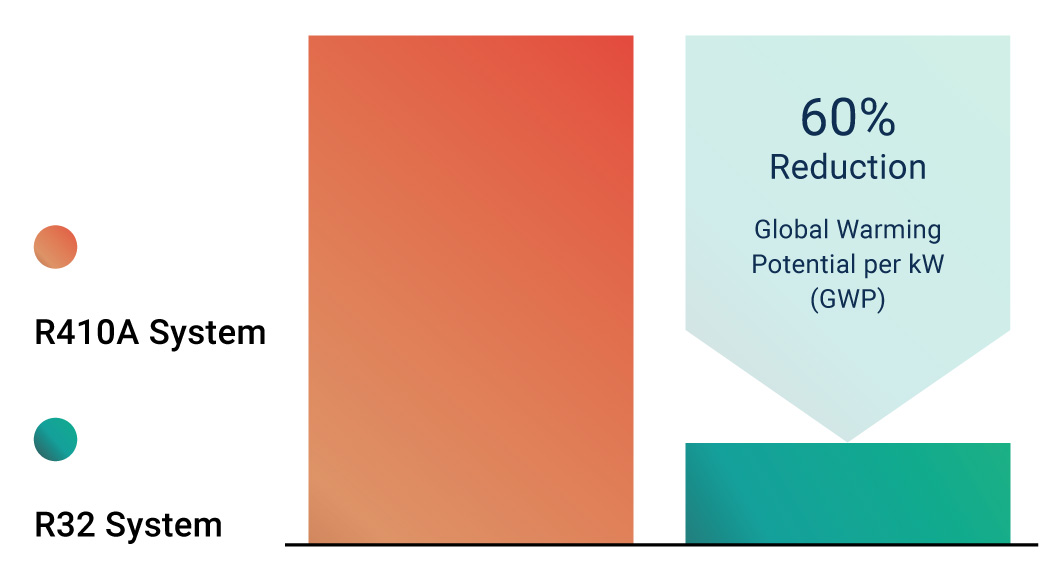

R32 Refrigerant
With a smaller refrigerant charge and a GWP of 677, R32 refrigerant represents a 60% reduction in overall GWP per kW of cooling or heating when compared to R410a systems (GWP 2088).
As higher GWP refrigerants face increasing cost due to emissions tax levies, the specification of R32 systems will represent a significant reduction in the future costs associated with maintaining these systems.

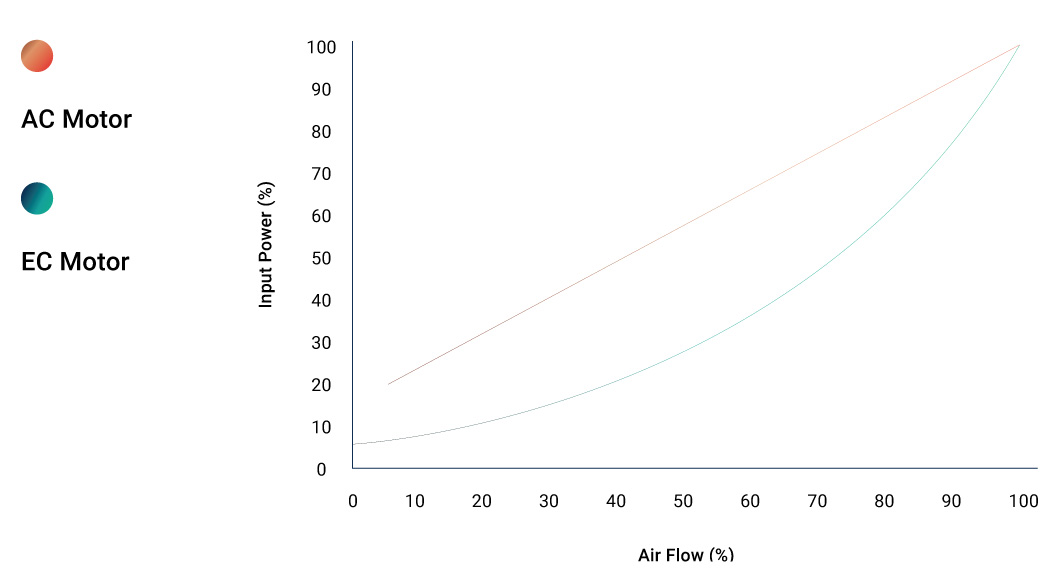

EC Fan Technology
EC fan motors are up to 20% more energy efficient than AC motor alternatives and enable quiet operation with slow ramp-up and no sudden noise changes. Achieve precise comfort with custom select fan speeds or continuously variable fan speed control.

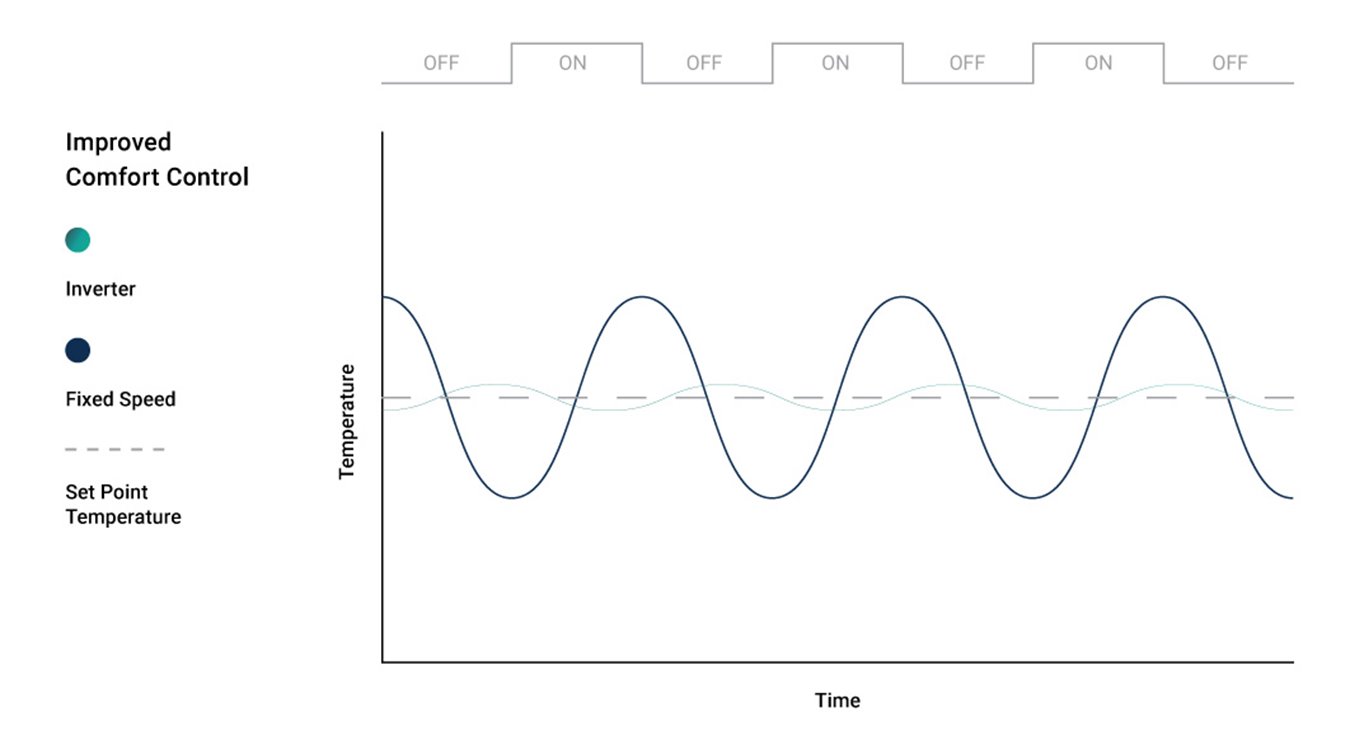

Inverter Compressors
Inverter compressor technology delivers precise control of indoor air temperatures for superior year round comfort with leading energy efficiency.
Fixed speed air conditioners are single speed on/off systems. Once the desired temperature is reached, they turn off, turning back on only when the temperature drops below or rises above a set level. This cycling between full or no capacity causes unnecessary waste of electricity and doesn’t maintain a constant room temperature.

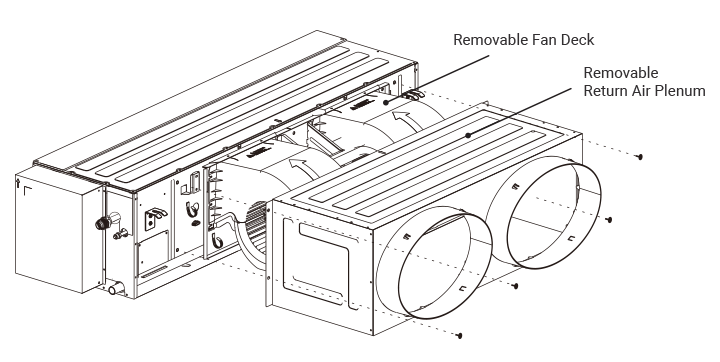

Splitable Indoor Unit
The indoor unit can be split into two sections allowing for an easier installation while positioning and connecting the unit. This feature can minimise roof impact and simplifies the installation process.

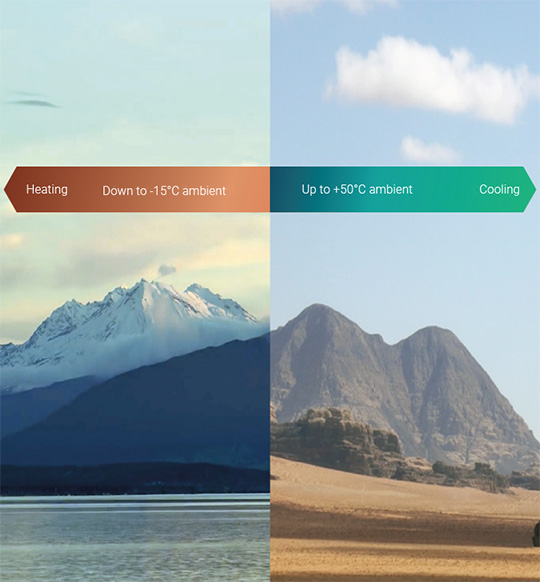

Extreme Weather operation
Designed for the harshest conditions these Templite Ducted Split units are designed to operate in ambient temperatures from -15°C to 50°C to ensure you’re always comfortable, whatever the weather.*
*ISDT 85 & 100 units operate from -15°C to 46°C.

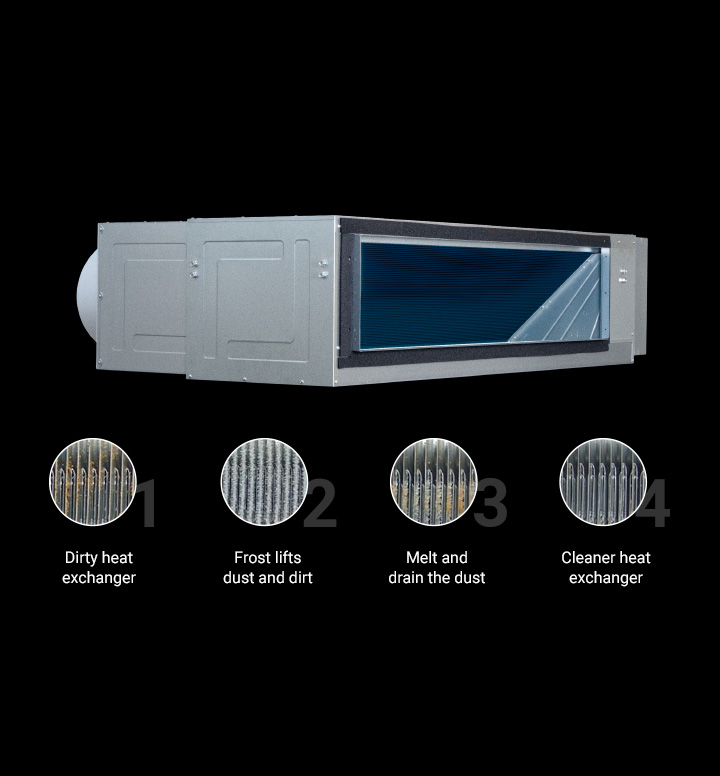

Self-Clean Technology
The Smart Self-Clean function enhances durability and efficiency by using an advanced frost and defrost cycle to keep your unit clean.
By activating Self-Clean this avoids the unit spreading dust mould and other particles around. Enjoy superior air quality with minimal maintenance, just press a button and let the unit clean itself.
Electronic Expansion Valves
EEVs enable improved efficiency and reduced operating costs at part-load conditions. They also facilitate maximised energy savings during the shoulder seasons – periods in which air conditioning systems often run at part-load.

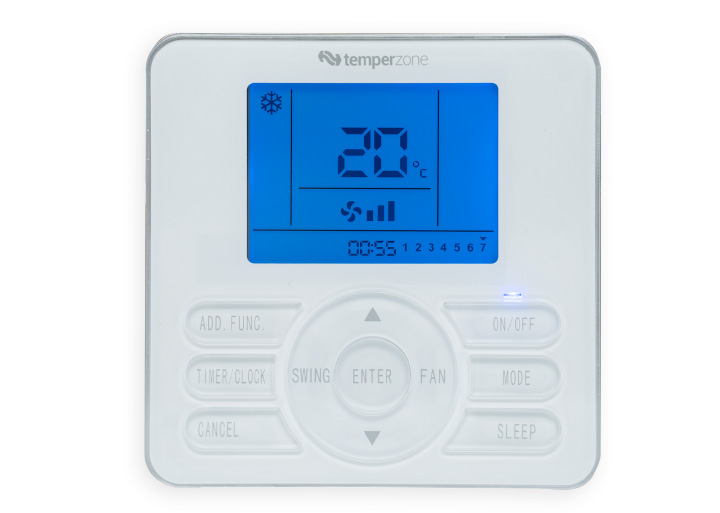

Convenient Control
- 7-Day Timer Schedule
- Countdown ON/OFF Timers (1 to 24 hours in 1-hour increments)
- Controller Lock
- Powerful Mode
- Silent Mode
- Sleep Mode
Built-in System Run Output Signal
Built-in 12V DC output signal for activating external fresh air fans in ventilation systems.
Accessories
Accessories include Extended Communication Cable Option and BMS Integration.
Extended Communication Cable Option
40m communication cable between IDU and ODU. No need for cable joining for longer cable run.
BMS Integration Capability
BMS Adapter. Supported protocols for both BACnet & Modbus.
