Perfect solution for large scale buildings

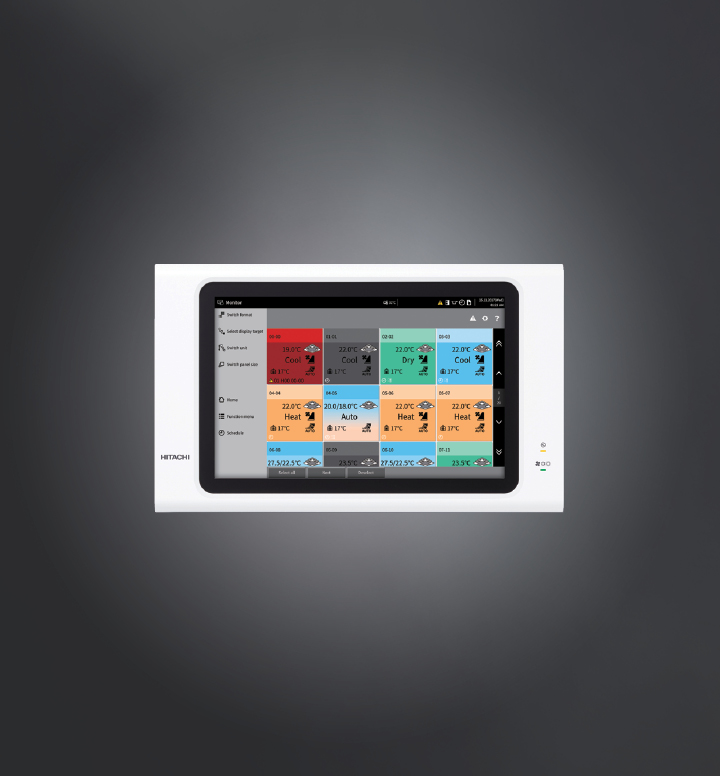

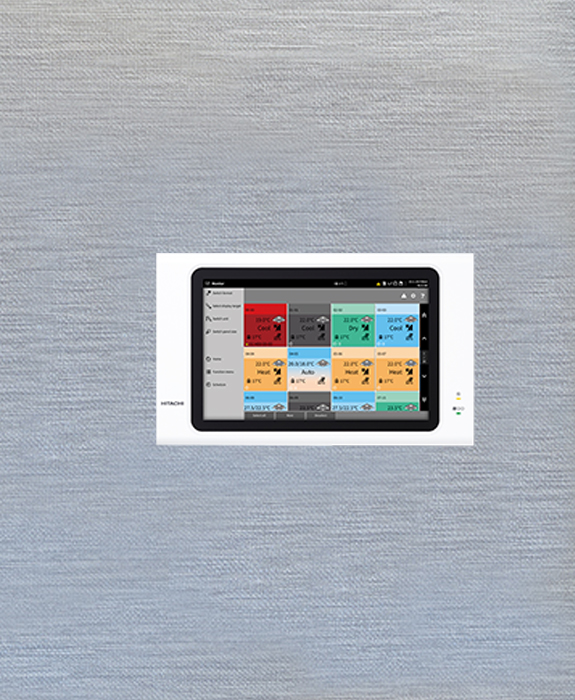

For large scale buildings such as hotels, educational facilities, or hospitals, our Central Station EX features a highly intuitive and functional 12.1-inch wide, wallmountable, colourful LCD screen. Control up to 2,560 indoor units with our proprietary H-LINK system with 15 Extension Adapters (PSC-AD128EX)
Central controller EX-PSC-A128EX
Available in:
White Only
Compatible with
- Hitachi VRF (selected fan coil units)
- Hitachi Mini VRF(selected fan coil units)
- Hitachi Multi-split ducted
Group Capacity
- 2,048 with external adaptors
- One external adapter can control [160 RC groups/128 groups/160 IDUs/64 ODUs/Each layout]
- Central Station EX can connect up to 15 adapters
Indoor Unit Capacity
- 2,560 with external adaptors
- One external adapter can control [160 RC groups/128 groups/160 IDUs/64 ODUs/Each layout]
- Central Station EX can connect up to 15 adapters
Intuitive interface

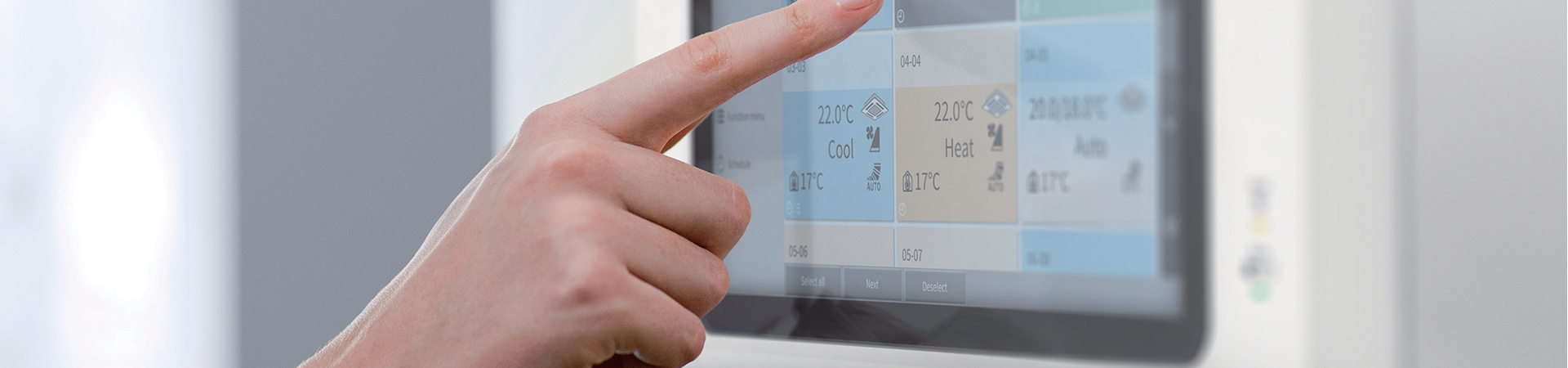

Central Station EX features a highly intuitive and functional 12.1" wide, wall-mountable colourful LCD screen and features flick and swipe to turn pages similar to smartphones
Energy Use Data Visualisation
The following data can be displayed up to the previous two years:
- Accumulated operation time (min.)
- Accumulated thermo-ON time (min.)
- Average air intake temperature of indoor unit
- Average air intake temperature of outdoor unit
- Average setting temperature
- Average RC sensor temperature (It may not be available depending on RC settings.)
Layout style
Upload your own layout images in multiple formats (BMP, JPEG, PNG) and easily arrange indoor units by drag and dropping them onto the touch panel.
Data at your fingertips
Management reports can be visualised in various ways, and data can be acquired using SD memory and USB flash devices.
Various data such as operation time, settings, and log history can be saved to CSV files for better energy management and quicker service maintenance.
