Harcourts - Hitachi SideSmart VRF Solution

Harcourts are leaders in Australian real estate – the fastest growing real estate brand across the country – forging national standards and delivering best practice in property services.


Harcourts Rata & Co chose Hitachi SideSmart VRF for its compact design of both the indoor and outdoor units. The client had a strong desire to ensure that the outdoor units were not visible from the street view, and the SideSmart’s compact profile perfectly addressed this requirement.



Key stakeholder requirements

Quick Lead Times — Hitachi SideSmart VRF is stocked and available to meet the project's tight construction schedule. of SideSmart units in stock aligned perfectly with their tight construction schedule, which required an immediate commencement.

Wi-Fi Control — Allows the key stakeholders to control the system and troubleshoot anywhere at any time via a smart device. Harcourts required remote access to the units, aligning perfectly with their technological preferences and providing them with greater control and convenience.

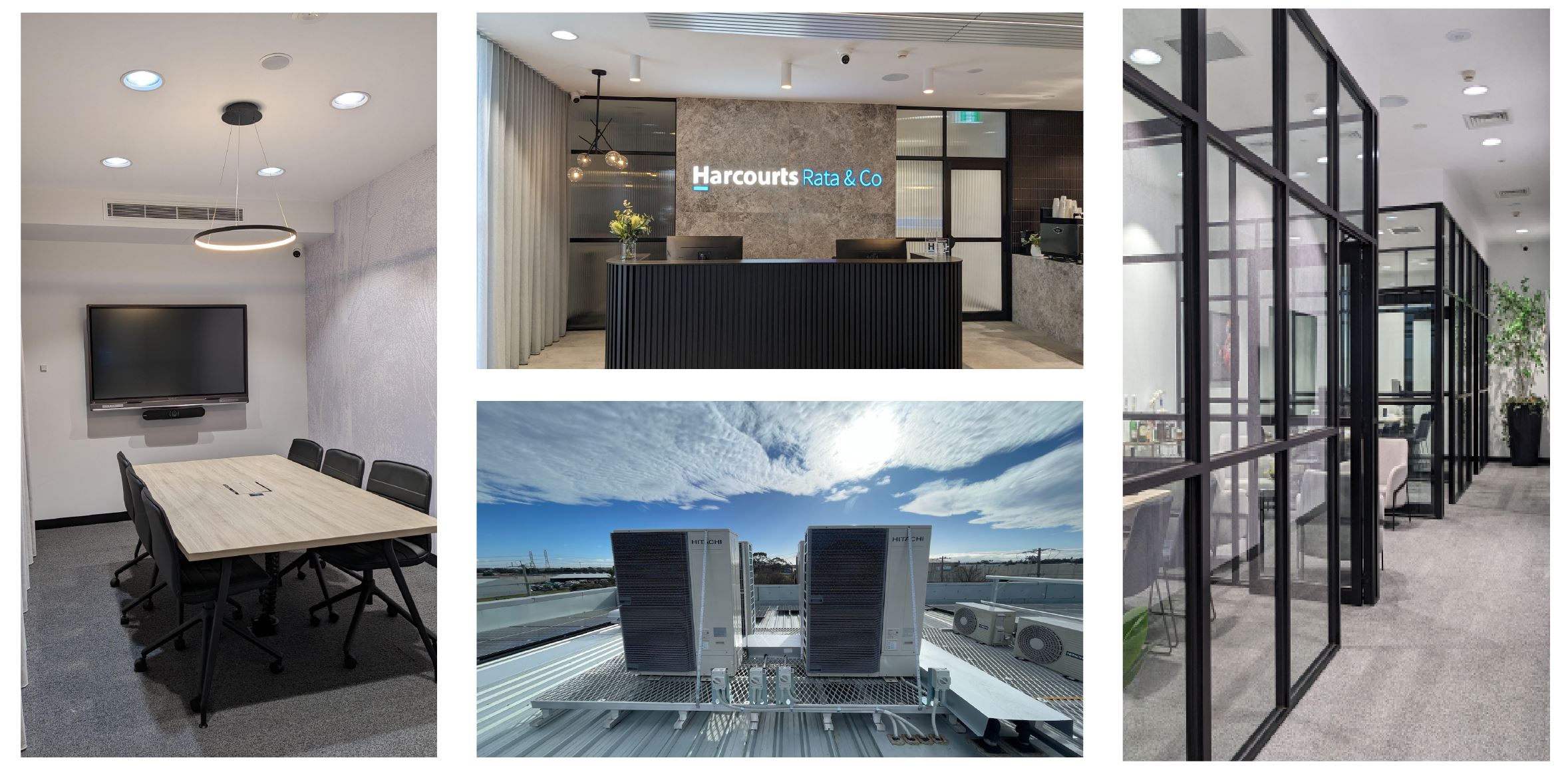

Compact installation — Lightweight Sidesmart™ Slim Modular VRF units were installed on the roof and compact indoor units maintained a minimalistic aesthetic. The client had a strong desire to ensure that the outdoor units were not visible from the street view.


The solution:

Our team selected the following Hitachi products

Hitachi SideSmart™ Slim Modular VRF — Chosen because of their compact side discharge outdoor units which measure only 420mm deep, these were able to fit in the limited space available without sacrificing performance. This range also presented fewer complications during delivery and installation due to its lightweight build. Its modularity means that up to 4 outdoor units can be connected, offering a maximum combined cooling capacity of 152kW.

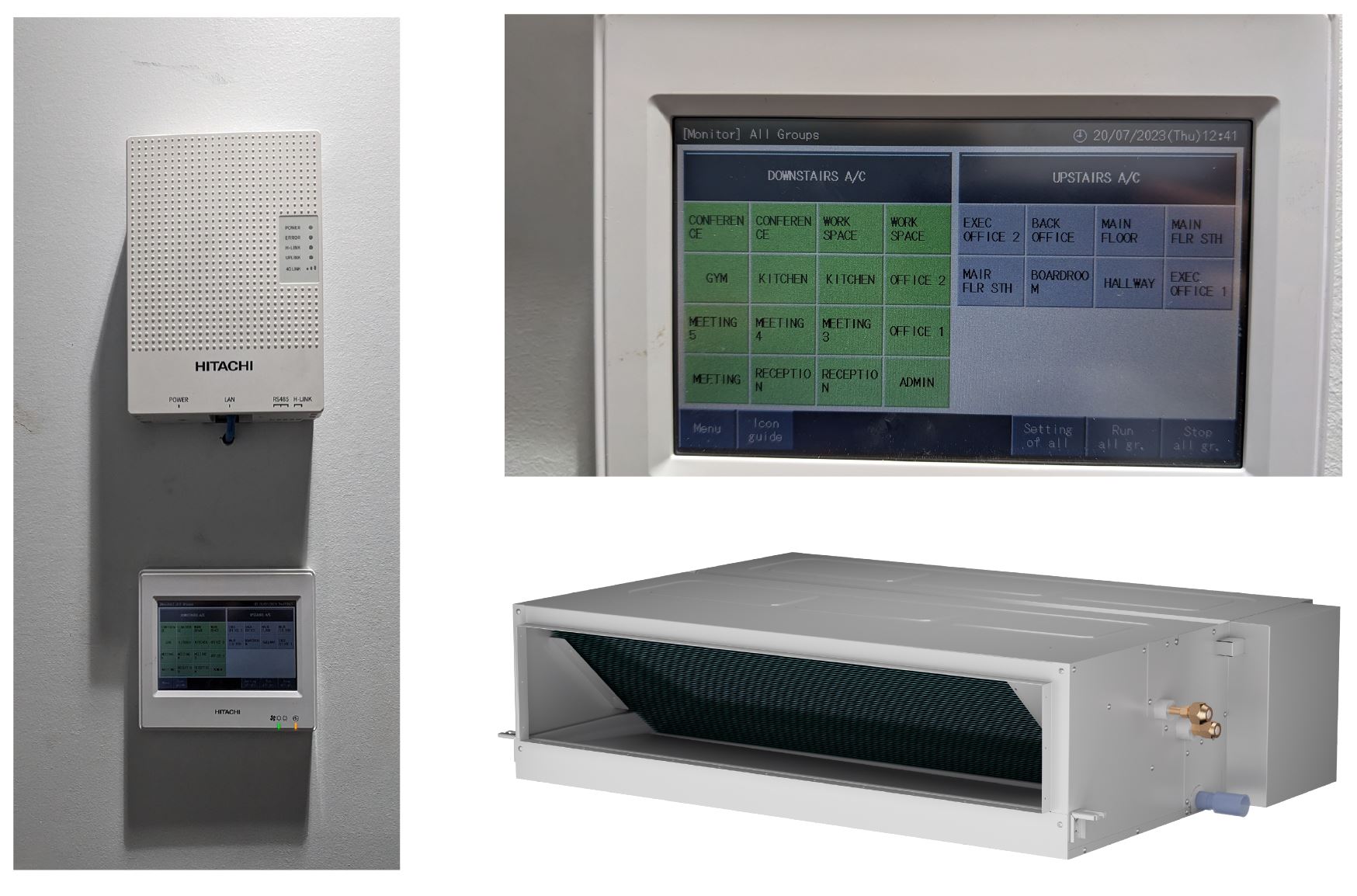

Compact Bulkhead Indoor Units - limited ceiling space on the ground floor played a crucial role in their decision-making process. The client’s preference for a sleek and minimalist design led them to select the compact bulkhead option, which harmoniously blended with the overall aesthetic.

Hitachi airCloud Pro VRF remote management — Installed to enable complete control via smartphone or web application. Project stakeholders were very impressed with the features of airCloud Pro, especially the capability for troubleshooting any system issues that may arise with access to an error history. Hitachi airCloud Pro alerts the users when maintenance is required to ensure the system is always operating efficiently and effectively.



Outdoor units

1x RAS-220HNCELWS (consisting of 1x RAS-120HNCELW and 1x RAS-100HNCELW)
1x RAS-240HNCELWS (2x RAS-120HNCELW)

Indoor units

5x RPIZ-1.0HNATNQ
2x RPIZ-1.3HNATNQ
4x RPIZ-2.0HNATNQ
1x RPIZ-2.3HNATNQ
4x RPIZ-2.5HNATNQ
1x RPI-5.0FSR
4x RPIM-3.0FSR
3x RPIM-4.0FSR

Controls

24x PC-ARFG-A 21x THM-R2A 1x airCloud Gateway 1x PSC-A32MN


Developer: Harcourts Rata and Co
Contractors: Ralcron Tigani Pty Ltd
